Zerto-Turn Mäher CASTER AND HEIGHT-OF-CUT ASSEMBLY Ricambi

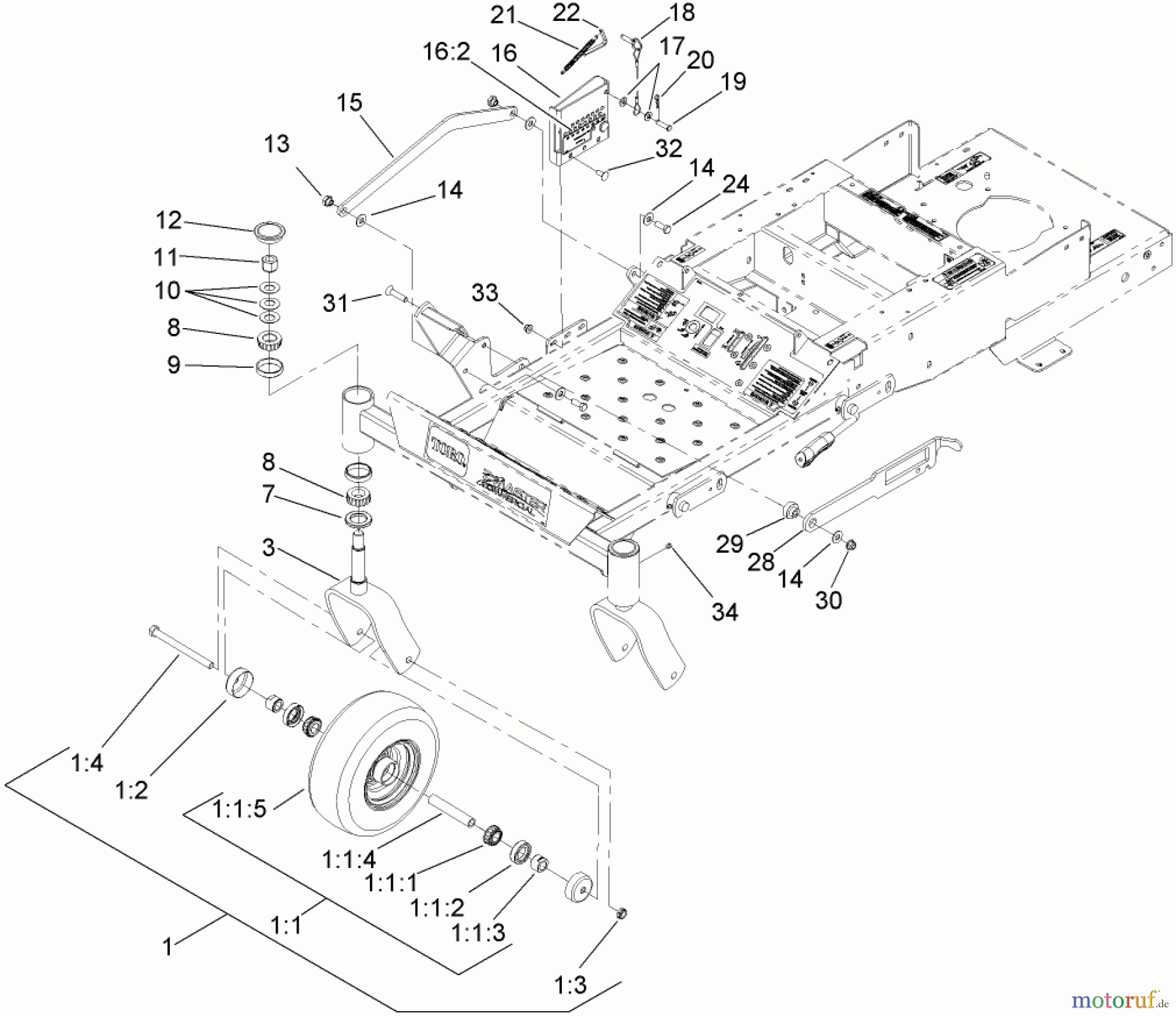

CASTER AND HEIGHT-OF-CUT ASSEMBLY 74408TE (Z300) - Toro Z Master Mower, 86cm 7-Gauge Side Discharge Deck (SN: 280000001 - 280999999) (2008)

Zerto-Turn Mäher 74408TE (Z300) - Toro Z Master Mower, 86cm 7-Gauge Side Discharge Deck (SN: 280000001 - 280999999) (2008) CASTER AND HEIGHT-OF-CUT ASSEMBLY
PosizioneArticolo numeroDescrizione
1 TR112-3810WHEEL/TIRE AND BEARING ASM
1:1 TR
1:1:1 TR1-633585BEARING-CONE, TAPER
1:1:2 TR103-0063SEAL-CASTER
1:1:3 TR103-3051SPACER-NUT
1:1:4 TR103-3157AXLE-CASTER
1:1:5 TR110-9965WHEEL AND TIRE ASM
1:2 TR103-2768GUARD-SEAL
1:3 TR3296-45NUT-LOCK, NI
1:4 TR325-20Schraube
3 TR103-8618-01FORK-CASTER
7 TR1-543511SEAL-GREASE
8 TR1-543509BEARING-ROLLER, TAPERED
9 TR1-543508CUP-BEARING
10 TR1-633508Scheibe
11 TR3296-51Mutter
12 TR103-4882CAP-GREASE
13 TR103-9933NUT-SHOULDER
14 TR63-8410Scheibe
15 TR103-9932LINK-CONTROL, DECK
16 TR112-3820HEIGHT ADJUST ASM
16:2 TR112-3855DECAL-DECK HEIGHT, CE
17 TR1-303334WASHER-SPRING
18 TR109-3323HEIGHT PIN W/LANYARD ASM
19 TR283-6Bolzen
20 TR1-806003HAARNADELSICHERUNG
21 TR109-2416SPRING-ADJUST, HEIGHT
22 TR109-2620PAWL-CONTROL, HEIGHT
24 TR323-6Schraube
28 TR109-2410BAR-ADJUST, HEIGHT
29 TR103-9934BUSHING
30 TR104-8301Mutter
31 TR3289-19Schraube
32 TR3230-23Schloss Schraube
33 TR104-8300Mutter
34 TR1-811010STOPFEN
