Murray 621451x0NA - B&S/ 21" Single Stage Snow Thrower (2002) (Northern Tool) Top Cover Assembly Ricambi

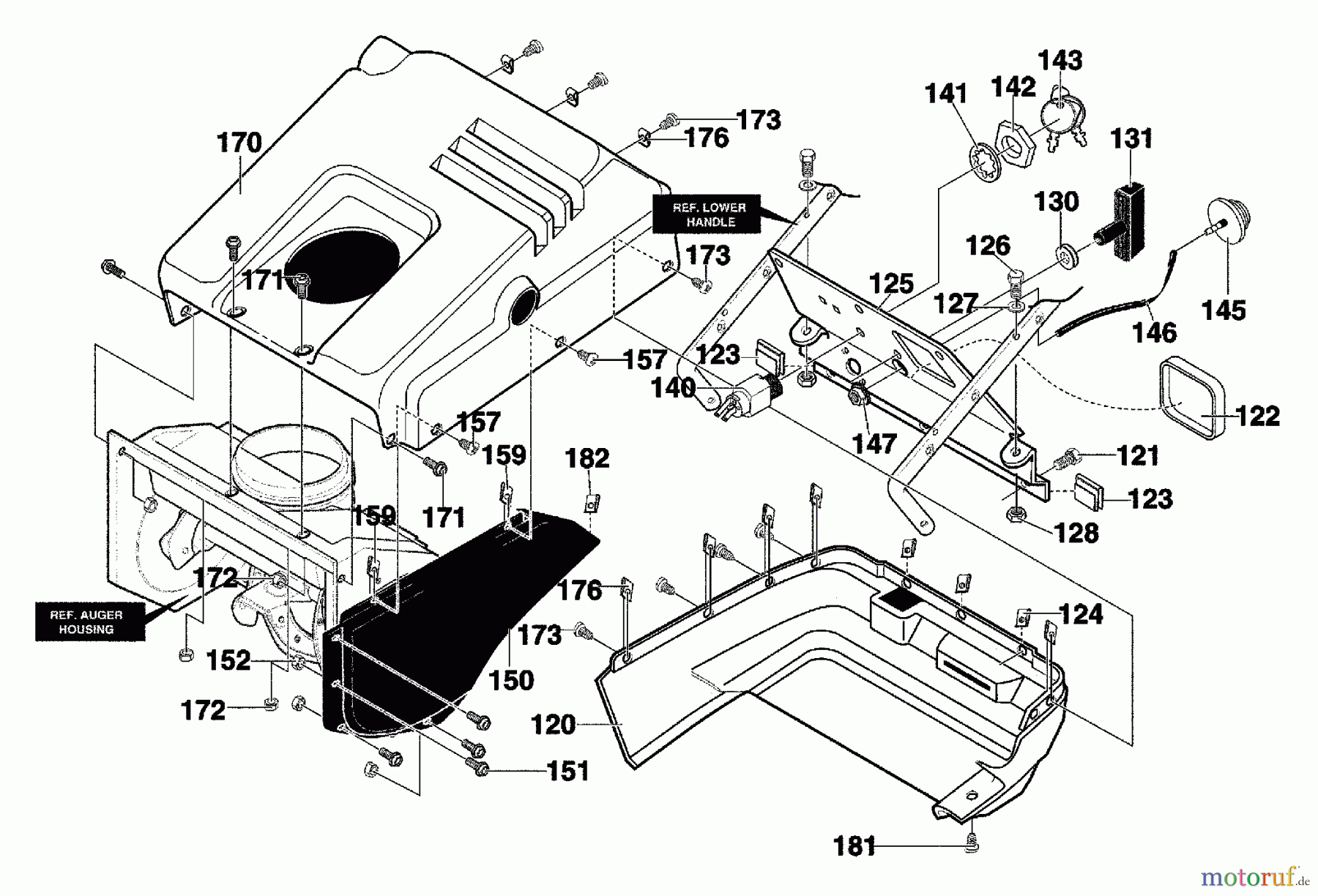

Top Cover Assembly 621451x0NA - B&S/Murray 21" Single Stage Snow Thrower (2002) (Northern Tool)

Posizione	Articolo numero	Descrizione
120	BS340097MA	COVER,BOTTOM 5/21 BLA
121	BS313685MA	SCREW, 1/4-14X .75 SL
122	BS761538MA	PANEL,SPARK PLUG ACCE
123	BS313057MA	CLIP,S-TINNERMAN SCHWARZ
124	BS578109MA	MUTTER, 1/4-10 GESCHWINDIGKEI
125	BS761631E701MA	KONTROLLKONSOLE T3 T4
126	BS313674MA	SCREW, 1/4-20X1.25 HH
127	BS071067MA	WHL BRKT ASY-14HW LH
128	BS73826MA	NUT.25-20 HEX CTRL0CK
130	BS57587MA	GUMMITULLE&SCHEIBE,SEILFUHRUNG
131	BS333643MA	KNOPF
140	BS56992MA	SWITCH,IGNITION 45 DE
141	BS580969MA	WASHER, FLAT .680X1.1
142	BS300193MA	NUT.62-32 ACC #125 PL
143	BS420729MA	SCHLUSSEL-2 EA.
145	BS54601MA	PRIMER BULB,2CY SNOW
146	BS335507MA	HOSE,PRIMER 9.50 LG
147	BS271172MA	MUTTER, 1/4-20 REGHEXKEP
150	BS340089MA	COVER,BELT 21 BLACK
151	BS12342MA	SCHRAUBE, 10-24X.50 WAHH
152	BS312300MA	NUT,10-24 HEX CTRLK
157	BS313685MA	SCREW, 1/4-14X .75 SL
159	BS578109MA	MUTTER, 1/4-10 GESCHWINDIGKEI
170	BS340165MA	OBERE ABDECKUNG 21 ROT
171	BS12342MA	SCHRAUBE, 10-24X.50 WAHH
172	BS312300MA	NUT,10-24 HEX CTRLK
173	BS313685MA	SCREW, 1/4-14X .75 SL
176	BS578109MA	MUTTER, 1/4-10 GESCHWINDIGKEI
181	BS313685MA	SCREW, 1/4-14X .75 SL
182	BS578109MA	MUTTER, 1/4-10 GESCHWINDIGKEI
