Murray 1695459 (900/26) - Ultra 26" Dual Stage Snow Thrower (2007) Gear Case Ricambi

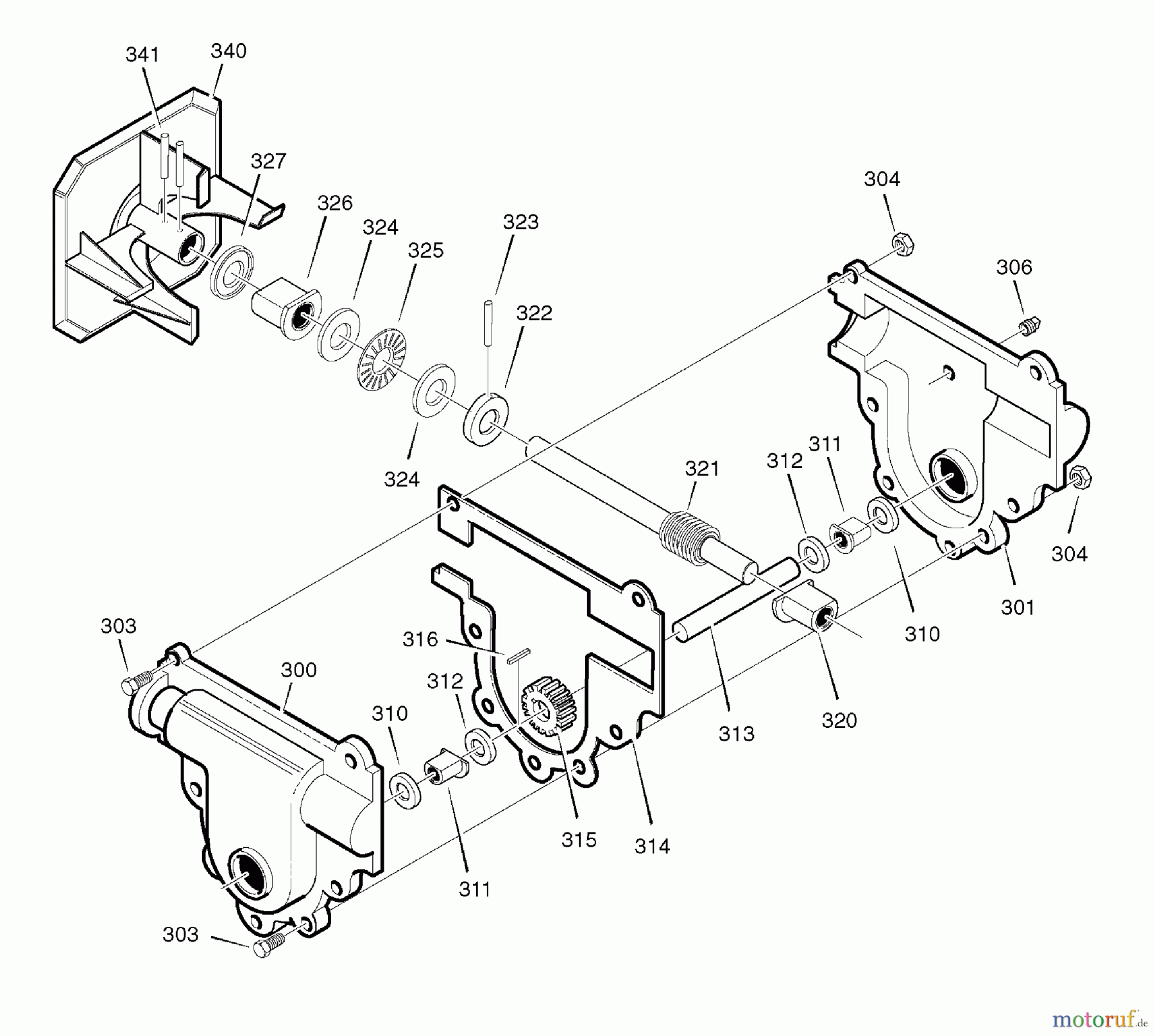

Gear Case 1695459 (900/26) - Murray Ultra 26" Dual Stage Snow Thrower (2007)

Murray Schneefräsen 1695459 (900/26) - Murray Ultra 26
PosizioneArticolo numeroDescrizione
300 BS10577MAGETRIEBEKASTEN RECHTS 10"AUG/
301 BS10576MAGETRIEBEKASTEN LINKS 10AUG/9I
303 BS710025MASCHRAUBE, 1/4-20 X .75
304 BS15X143MAMUTTER,25-20 HEX FLG CTR
306 BS9344MASCREW.38-16X0.50 WAHT
310 BS9566MAOLDICHTUNG, .75 X 1.19
311 BS50304MALAGER, FLANSCH .752IDX1.002
312 Murray WASHER, FLAT .752X1.BS48275MAWASHER, FLAT .752X1.
313 BS340287MASHAFT,AUGER OUT 26 H1
314 BS51279MAGETRIEBEGEHAUSEDICHTUNG CF 9
315 BS51405MAANTRIEBSSCHNECKE
316 BS431787MASCHLUSSEL, WDRF #61 .625X.1
320 BS50221MABRNG,FLNG.502IDX0.752
321 BS1501128MASHAFT,IMPELLER CF
322 BS580295MACOLLAR,THRUST.753X1.2
323 BS454565MAPIN, SPRING.250DIAX1.
324 Murray WASHER, FLAT .752X1.BS48275MAWASHER, FLAT .752X1.
325 BS50684MABRNG, ROLL .750IDX1.2
326 BS50304MALAGER, FLANSCH .752IDX1.002
327 BS9566MAOLDICHTUNG, .75 X 1.19
340 BS760194E701MAIMPELLER ASY, 9IN 4BL
341 BS454565MAPIN, SPRING.250DIAX1.
-- BS333431MALUBRIPLATE GR132 14OZ
