Murray 107.250050 (2691086-00) - Craftsman CTX9000, 46" Rear Lawn Tractor, 22HP (2012) Frame & Front Axle Group (2986681) Ricambi

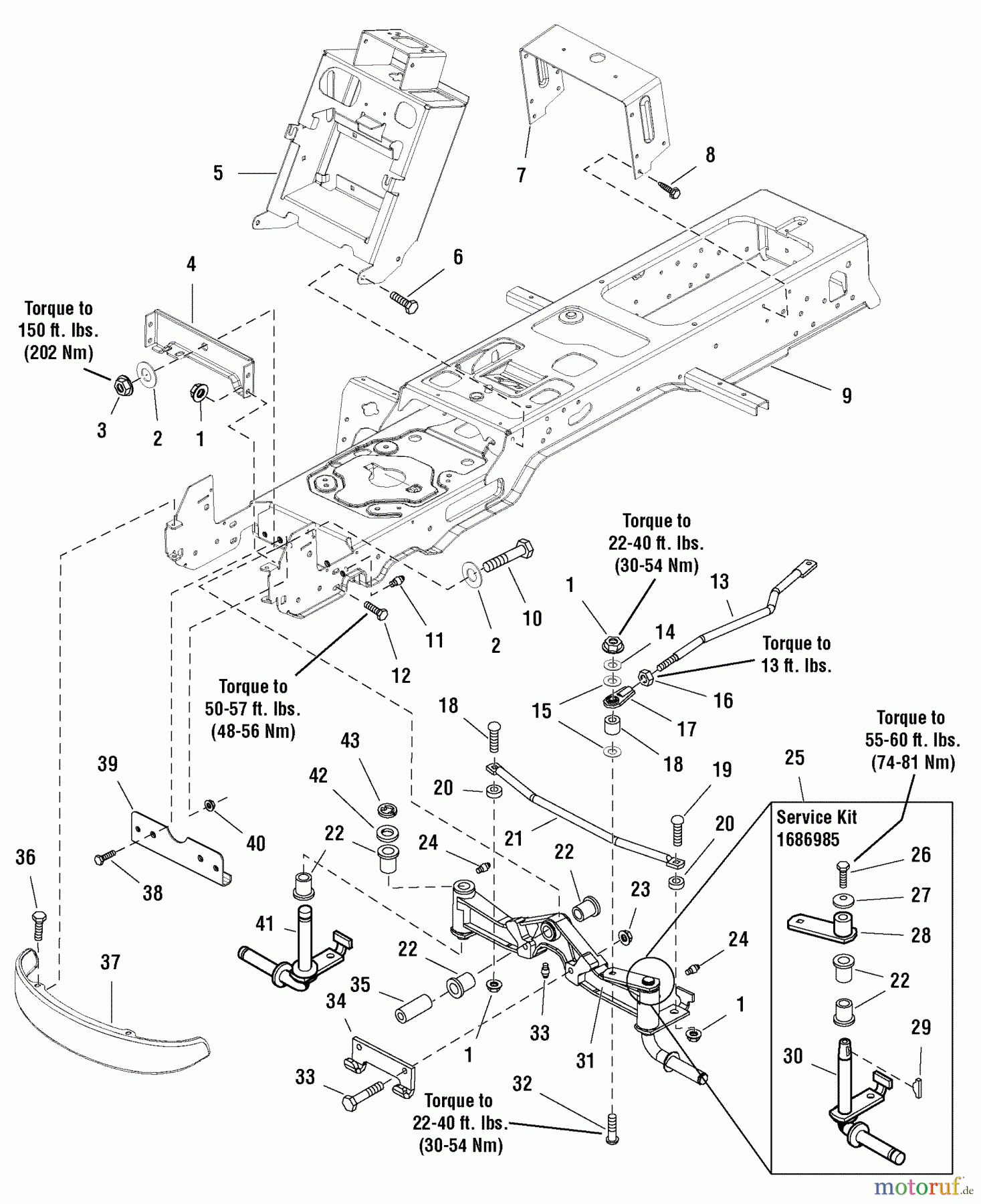

Frame & Front Axle Group (2986681) 107.250050 (2691086-00) - Craftsman CTX9000, 46" Rear Lawn Tractor, 22HP (2012)

Murray Rasen- und Gartentraktoren 107.250050 (2691086-00) - Craftsman CTX9000, 46
PosizioneArticolo numeroDescrizione
1 BS1930645SMNUT-HEX FLANGE 3/8-16
2 BS1960035SMSCHEIBE 0.625(0641DX1
3 BS2860646SMBUNDMUTTER HD 5/8-11
4 BS1722212ASMPLATE-AXLE SUPPORT-BL
5 BS1733765ASMFRAME ASMY-FRONT & RE
6 BS1923683SMSCHRAUBE
7 BS1723528ASMSITZAUFNAHME SCHWARZ
8 BS1664847SMSCHRAUBE
9 BS1733765ASMFRAME ASMY-FRONT & RE
10 BS2860645SMHUTMUTTER SECHK. HD 5/8-
11 BS1704314SMSCHMIERNIPPEL 250 DR
12 BS1933260SMSECHSKANTSCHR. FLANSCH
13 BS1722541SMLINK-DRAG .625DI
14 BS1922755SMABZIEHER-SCHEIBE
15 BS1960103SMU-SCHEIBE-0.375(0.39IDX0
16 BS1919262SMSECHSKANNTMUTTER 1/2-20 NF
17 BS1702779SMSPURSTANGENKOPF 500-20 TH
18 BS1708236SMSPACER-0.377ID 0.500O
19 BS1931350SMBOLT, RD HD SH SQ NK
20 BS1611705SMDISTANSRING-0.385IDX0
21 BS1722626ASMROD-TIE .625DIA-BLACK
22 BS1721682SMACHSBUCHSEN VIP
23 BS1930650SMBUNDMUTTER 7/16-1
24 BS2821133SMLUBE FITTING, .250 DR
25 BS1686985SMSPINDLE REPLACEMENT K
26 BS2823485SMCAPSCREW-HEX HD 3/8-1
27 BS1663151SMWASHER, SPRING 0.285I
28 BS1725112SM
29 BS2830671SMKEY-HI PRO .250X0.750
30 BS1724264SMSPINDLE,LH
31 BS1722200ASMAXLE,SPINDLES-BLACK
32 BS1931352SMBOLZEN 3 / 8
33 BS1927531SMKOPFSCHRAUBE SECHSK. HD 7/16-
34 BS1721918ASMHAKEN-J SCHWARZ
35 BS1721752SMDISTANZBUCHSE 0.641 ID 0.9780
36 BS1960086SMSCREW, TRUSS HD Sternantrieb
37 BS1721805ASMSTO?LEISTE 14GA-SCHWARZ
38 BS1930591SMSCREW-HEX WZ LOCK FLN
39 BS1724801ASMPLATE-AXLE .135THK "U
40 BS1931277SMMUTTER - HEX
41 BS1722199SM
42 BS1919394SMWASHER-1.000(1.03IDX1
43 BS2832577SMSICHERUNGSRING, #98 0.9
