Toro 56133 (8-25) - 8-25 Rear Engine Rider, 1991 (1000001-1999999) TRANSMISSION & LINKAGE ASSEMBLY Ricambi

SPACER-PIVOT

Articolo numero:
TR76-3970
Posizione:
69
3.54 €
Tutti i prezzi includono l'IVA nell'UE, in più spedizione
Quantità:
Dettagli di contatto Sicurezza del prodotto
Articolo aggiunto al carrello1
yellow Verrà ordinato per te: tempo di consegna circa 5 giorni lavorativi.

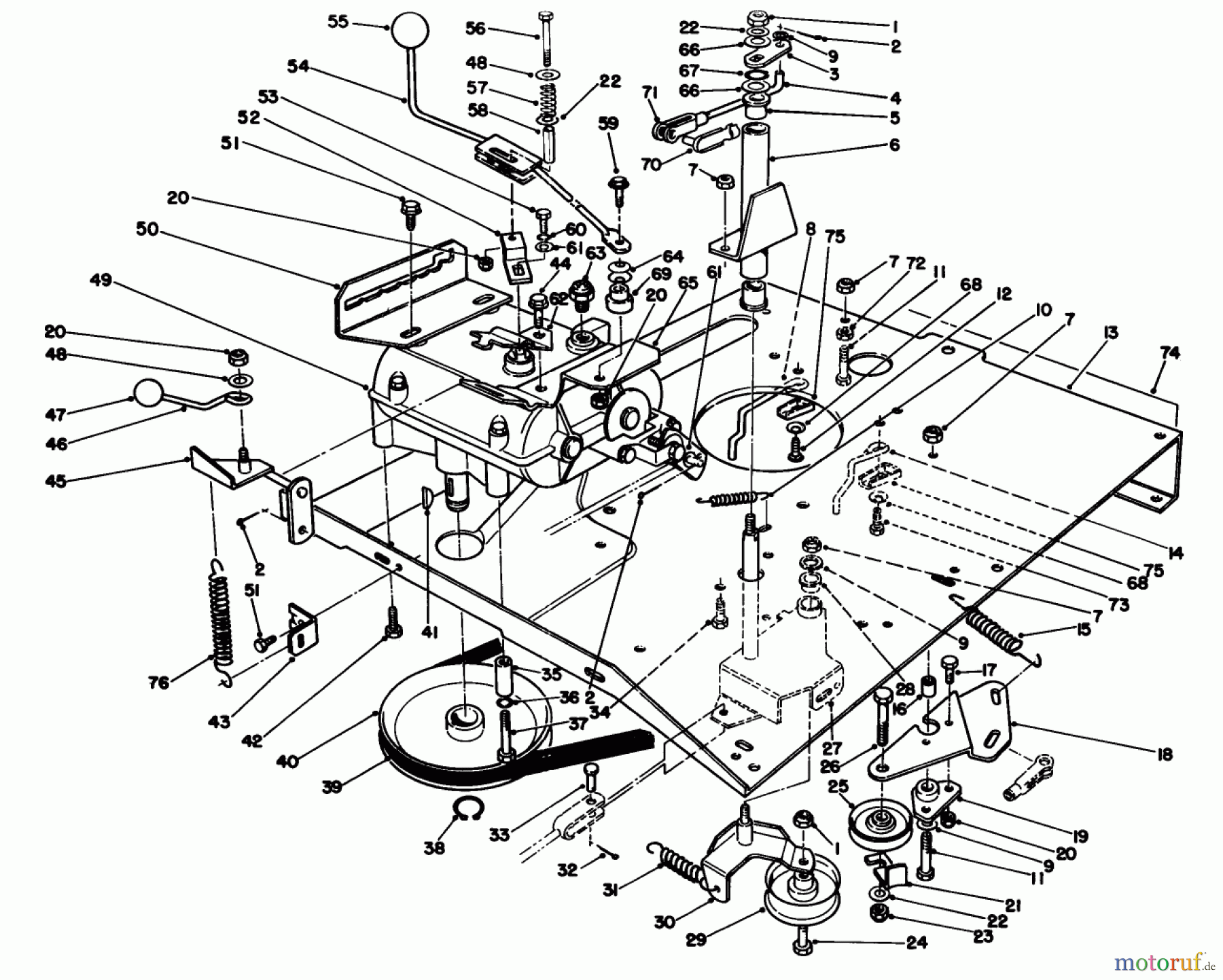

Toro Neu Mowers, Rear-Engine Rider 56133 (8-25) - Toro 8-25 Rear Engine Rider, 1991 (1000001-1999999) TRANSMISSION & LINKAGE ASSEMBLY
PosizioneArticolo numeroDescrizione
1 TR32-9639
2 TR3272-6Splint
3 TR67-0690-03HALTERUNG
4 TR68-8370Gestaenge
5 TR256-90Buechse
6 TR67-0540-03IDLER PIVOT TUBE ASM
7 Toro MutterTR3296-29Mutter
8 TR67-0930ENG BELT GUIDE R.
9 TR3256-23Scheibe
10 TR26-6700Feder
11 TR322-6Schraube
12 TR3230-2Schraube
13 TR76-4090-01MOTORKONSOLE
14 TR67-0940Riemenfuehrung
15 TR68-9950Zugfeder
16 TR67-0410Buechse
17 Toro SchraubeTR321-4Schraube
18 TR67-0420-03Keilriemenspanner
19 TR67-0400Aufhaengung
20 Toro MutterTR3296-42Mutter
21 TR12-9020DISCONTINUED
22 Toro WASHER-FLATTR3256-24WASHER-FLAT
23 TR3296-59Mutter
24 TR323-10Schraube
25 TR12-5820Riemenscheibe
26 TR323-8SCREW-HH
27 TR67-0360SPANNARM
28 TR256-155Buechse
29 TR56-9870PULLEY-IDLER
30 TR67-0330-03IDLER MTG PLT ASM
31 TR67-9170Zugfeder
32 TR3274-4SCREW-HSH
33 TR283-67Bolzen
34 TR322-3Schraube
35 TR67-0920Riemenfuehrung
36 TR3253-4Federring
37 TR322-10Schraube
38 TR32120-64Ring
39 TR67-090067BELT, TRACTION DRIVE
40 TR82-6450PULLEY
41 TR3257-23KEY-WOODRUFF
42 TR32140-61DISCONTINUED
43 TR67-0750FEDERAUFHAENGUNG
44 TR32144-70Schraube
45 TR67-0600-03Gehaeuseaufhaengung
46 TR67-0640ROD-ENGAGE
47 TR233-22Griff
48 TR3256-55Scheibe
49 TR67-1400Getriebe
50 TR99-2970-03GATE-SHIFT
51 Toro SCREW-HWHTFTR32144-14SCREW-HWHTF
52 TR56-7620Getriebehebel
53 TR329-4SCREW-HH
54 TR76-3940-03Schalthebel
55 TR233-48KNOB
56 TR3211-5Schraube
57 TR56-7730SPRING-COMPRESSION
58 TR56-7740Distanzbuechse
59 TR321-8Schraube
60 TR3253-3Federring
61 TR3256-22Scheibe
62 TR67-0670BRKT-DECK ENG UPPER
63 TR28-4250Schalter
64 TR3290-478WASHER-BELLEVILLE
65 TR67-0660GETRIEBEAUFHAENGUNG
66 TR20-3220Scheibe
67 TR32151-62RING-RETAINING
68 TR3290-456Tellerscheibe
69 TR76-3970SPACER-PIVOT
70 TR67-1530CLEVIS PIN ASM
71 TR282-27Schenkel
72 TR3218-2NUT-JAM
73 TR32144-26Schraube
74 TR76-3860DISCONTINUED
75 TR76-3820Riemenfuehrung
76 TR67-1450Feder
