Gutbrod Sprint SLX 117 S 13AT606H690 (2001) Engine hood 6-Style Ricambi

CHOKE:CONT:38.0 LG x 1.50 EXT

Articolo numero:
746-1085
Posizione:
36
DINNORM:
746-1085
Modell Year:
SLX 117 S / 2002 Sprint SLX 107 S / 2001 Sprint SLX 117 S / 2001
49.92 €
Tutti i prezzi includono l'IVA nell'UE, in più spedizione
Quantità:
Dettagli di contatto Sicurezza del prodotto
Articolo aggiunto al carrello1
yellow Sarà ordinato per te. Tempi di consegna da 5 a 14 giorni lavorativi circa.

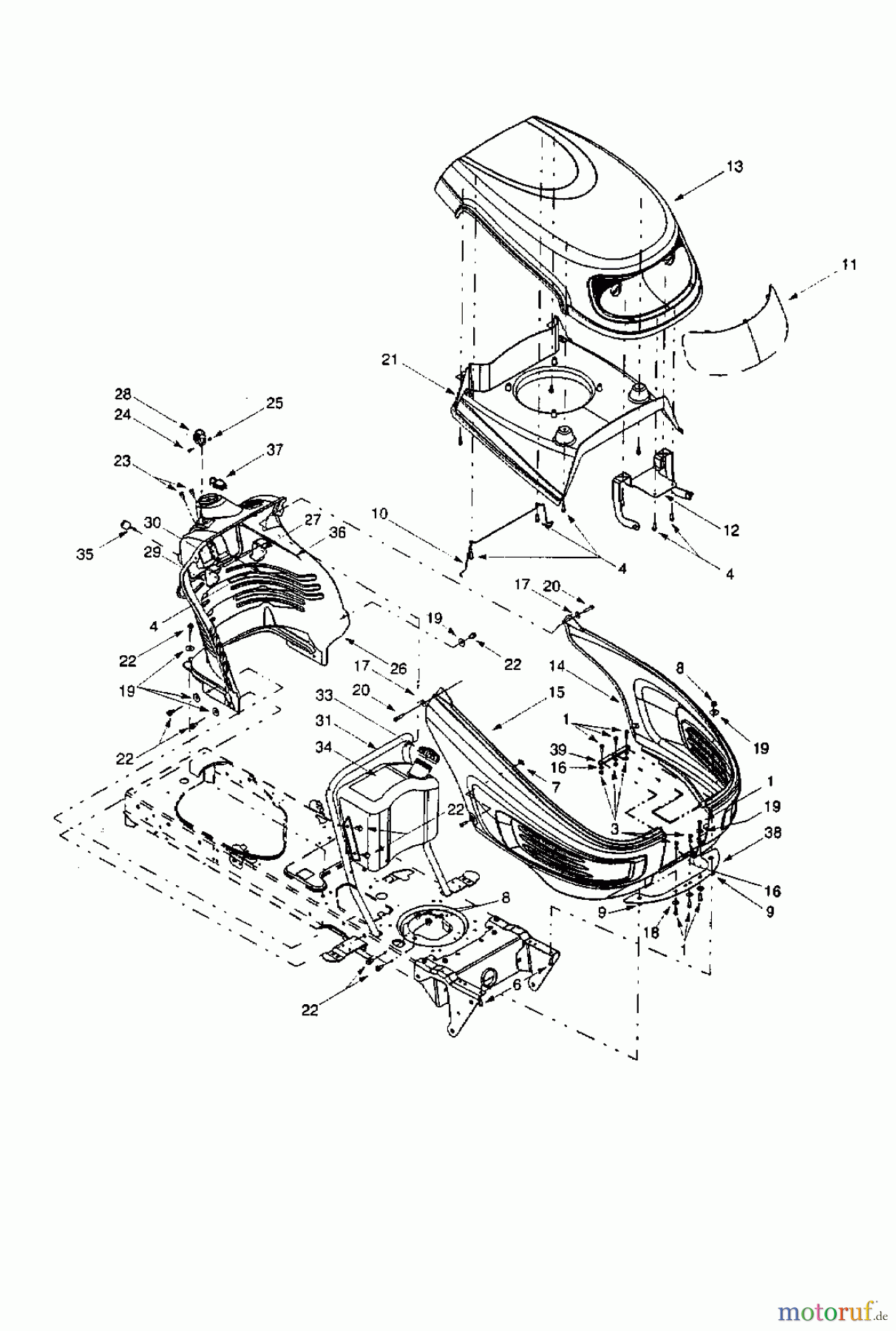

Gutbrod Lawn tractors Sprint SLX 117 S 13AT606H690 (2001) Engine hood 6-Style
PosizioneArticolo numeroDescrizione
1 Gutbrod HHCS:1/4-20:.75:GR5:STD710-3015HHCS:1/4-20:.75:GR5:STD
2 Gutbrod SCR:TT:1/4-20:0.500:HXINDWSH710-0599SCR:TT:1/4-20:0.500:HXINDWSH
3 712-3006NUT:HEX:1/4-20:GR5
4 Gutbrod SCR:HL:1/4-15:0.750:HXINDWSH710-0895SCR:HL:1/4-15:0.750:HXINDWSH
5 Gutbrod SCR:MACH:1/4-20:0.750 PANPHI710-0924SCR:MACH:1/4-20:0.750 PANPHI
6 Gutbrod HHCS:5/16-18:1.25:GR5:STD710-0528HHCS:5/16-18:1.25:GR5:STD
7 Gutbrod NUT:TINN:1/4-20712-0292NUT:TINN:1/4-20
8 Gutbrod NUT:FLGLK:5/16-18:GR5:SD LK712-3004ANUT:FLGLK:5/16-18:GR5:SD LK
9 Gutbrod NUT:SPD:.3125 ID726-0201NUT:SPD:.3125 ID
10 747-1209ROD:HOOD:LATCH:6 STYLE
11 731-2286HEAD LIGHT LENS:6 STYLE
12 683-0305BRKT ASM-HOOD
13 731-2283HOOD:6 STYLE
14 731-2307PNL:SD:LH 6 STYLE
15 731-2308PNL:SD:RH 6 STYLE
16 Gutbrod WASHER:LOCK:1/4:REGULAR DUTY736-0329WASHER:LOCK:1/4:REGULAR DUTY
17 736-0342WASHER:FLAT:.283 x.750 x .030
18 736-0173WASH:FL:.28ID:.74OD:.063
19 736-3078WASH:FLAT:.344 x 1.00 x 063:HD
20 Gutbrod SCR:TT:1/4-20:1.250:HXINDWSH710-0809SCR:TT:1/4-20:1.250:HXINDWSH
21 731-2284PLEN:6 STYLE
22 Gutbrod SCREW:TT:5/16-18:0.625HXINDWSH710-0604ASCREW:TT:5/16-18:0.625HXINDWSH
23 Gutbrod TAP SCREW:1/4-14:.625:TRUSTRXI710-1017TAP SCREW:1/4-14:.625:TRUSTRXI
24 710-3217SCR:MACH:#8-32:0.375:TRUSPHI
25 712-0142NUT:HEX:#8-32:GRA
26 731-0071DASH PANEL 4 STYLE
27 731-0072PARKING BRAKE BUTTON
28 731-1857KNOB:CONTROL
29 731-2106CRUISE CONTROL BUTTON
30 747-1155ROD:LVR:BRAKE/CRUISE PIVOT
31 749-1087TUBE-DASH SUPPORT
32 731-2232BLLW:INTAKE:4.12LG
33 Gutbrod CAP-GAS TANK751-0603CAP-GAS TANK
34 751-0658ATANK-FUEL 3 GAL
35 725-1745KEY:IGN:STD
35A Gutbrod KEY:SW:DELTA725-1744KEY:SW:DELTA
36 746-1085CHOKE:CONT:38.0 LG x 1.50 EXT
37 725-1752SWITCH-ELECTRIC PTO
38 731-2272SHLD:HEAT
39 783-1000FASTENING PLATE
