Snapper SFH13320KW (5091002) - 32" 13 HP, Hydro Drive, Commercial Lawn & Turf Series 0 32" Mower Deck - Frame, Caster & Shield Ricambi

Articolo numero:
BS5048965D
Posizione:
34
non più disponibile

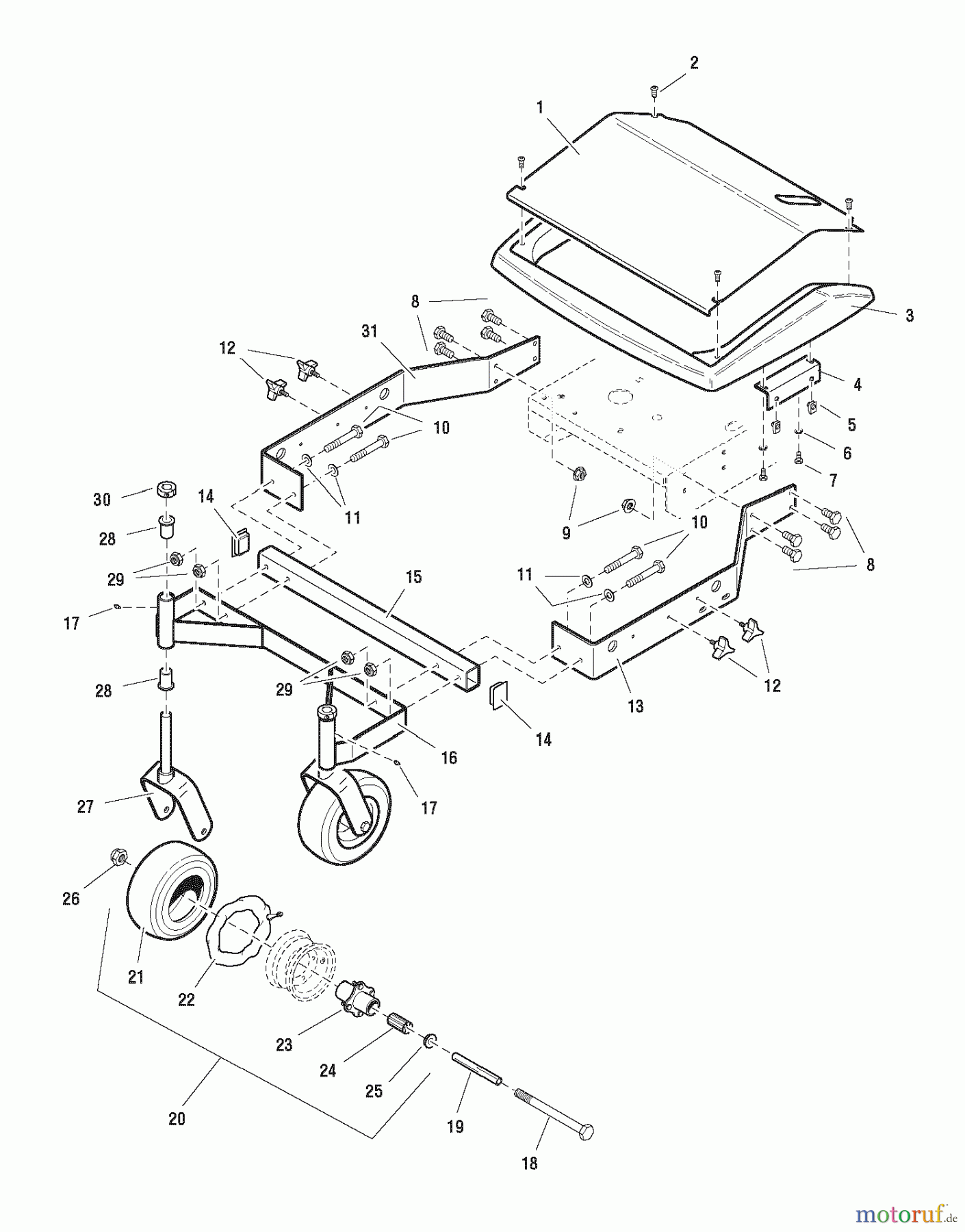

Snapper Rasenmäher für Großflächen SFH13320KW (5091002) - Snapper 32
PosizioneArticolo numeroDescrizione
1 BS5049101YP
2 BS5025299X4SMSCHRAUBE, 1/4-20 X 1/2"
3 BS5048150SM
4 BS5048353DYPBRACKET, GUARD MOUNT
5 BS3022308
6 BS5025169SMWASHER, 1/4" LOCK
7 BS5025010X6SMBOLZEN, 1/4-20 X 3/4 X 5"
8 BS5025013X8SMBOLZEN, 3/8-16 X 1" GD5
9 BS5025128SMMUTTER, 3/8-16 SECHSK.
10 BS5025013X20SMBOLZEN, 3/8-16 X 2-1/2
11 BS703590WASHER, FLAT, .406
12 BS5022319SMKUNSTOFFGRIFF 5/16- 1
13 BS5047648D
14 BS5022098SM
15 BS5048194DYPTUBE, CROSS
16 BS5047677DYPWELD, CASTER MOUNT
17 BS5020095SMSCHMIERNIPPEL , 1/4-2
18 BS5025017X44SMBOLT, 1/2-13 X 5-1/2"
19 BS5041657SMAXLE, CASTER WHEEL
20 BS5021181SSMTIRE ASSM, 9 X 3.5 X
21 BS5021181X1SM9X350-4 TIRE ONLY
22 BS5021181X2SM
23 BS5021181SX3SM
24 BS5021182SMBEARING, ROLLER
25 BS5021043SMLAGERAUFNAHME
26 BS7091325YPHLN, NYLON, 1/2C YZ
27 BS5048172DYPWELD, CASTER YOKE - R
28 BS5020823SMBUSHING, FLANGE, 3/4
29 BS5025096SMMUTTER, 3/8-16 HEX NYLON
30 BS5010114SMCOLLAR, 3/4" SPLIT
31 BS5047649DYP
32 BS5023274SMCAP,VINYL, 1.375 X 1
33 BS5048968DYPASSM, CASTER MOUNT W/
34 BS5048965D
