Murray 46378x6A - Ultra 46" Garden Tractor (1996) Mower Housing Ricambi

Name: SPRING-EXTENSION
Price: 8.10 EUR

SPRING-EXTENSION

Articolo numero:

BS165X79MA

Posizione:

8.10 €

Tutti i prezzi includono l'IVA nell'UE, in più spedizione

Dettagli di contatto Sicurezza del prodotto

Articolo aggiunto al carrello1

Verrà ordinato per te: tempo di consegna circa 5 giorni lavorativi.

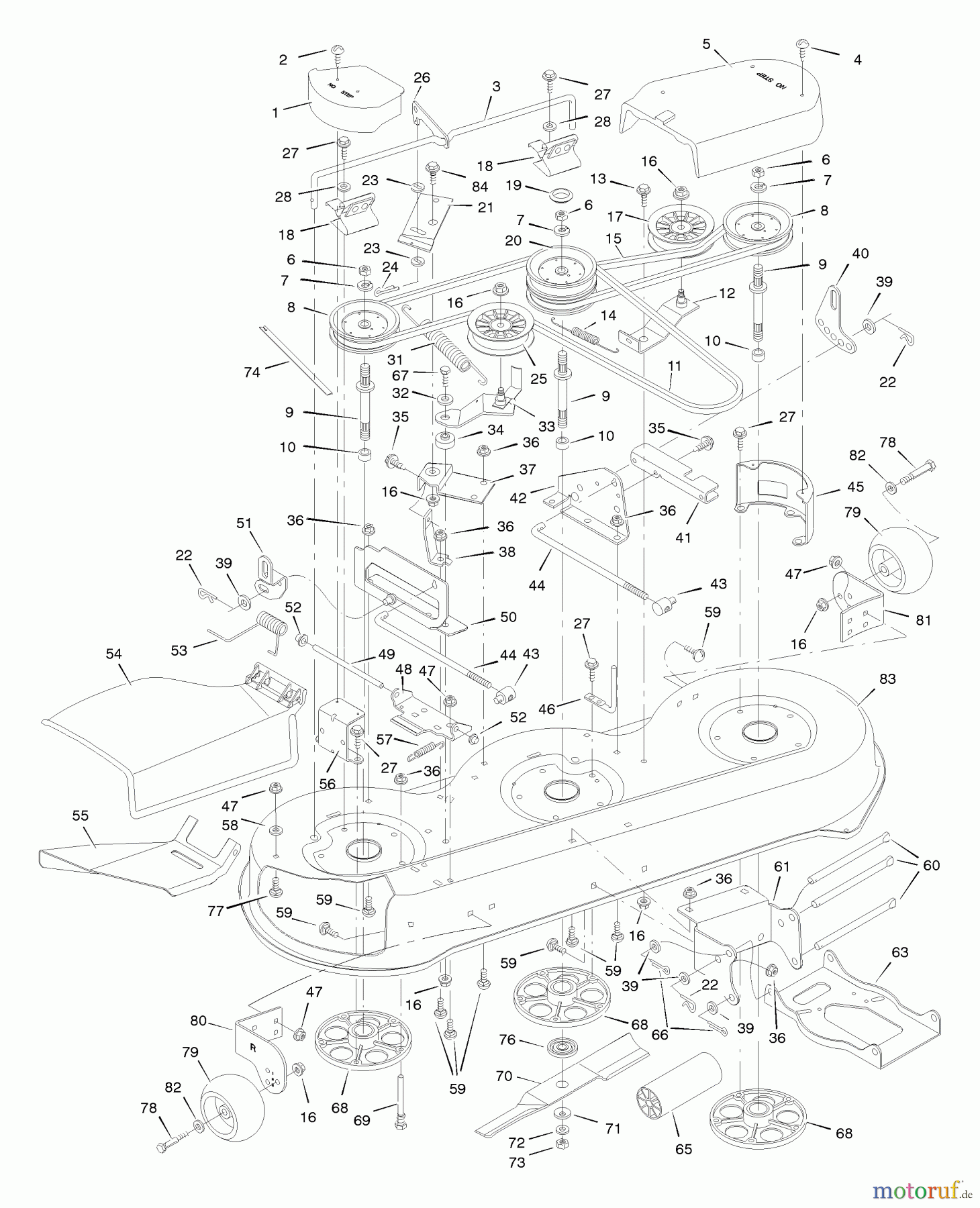

Murray Rasen- und Gartentraktoren 46378x6A - Murray Ultra 46

Posizione	Articolo numero	Descrizione
1	BS092145MA	COVER-RH PULLEY
2	BS26X250MA	SCREW-TAPPING 10-16
3	BS092129ZMA	ROD-BRAKE
4	BS26X258MA	SCREW-THD.FORMING
5	BS92154E701
6	BS15X100MA	MUTTER.56-18 REG UNF Z-Y
7	BS018X33MA	WASHER.56.96X.14 SPLI
8	BS092127MA	PULLEY-JACKSHAFT 46
9	BS491921MA	BLINDWELLE
10	BS091925MA	SPACER-BEARING-P/M
11	BS037X69MA	RIEMEN-DECK ANTRIEB 80.10
12	BS92112E701
13	BS009X39MA	ANSATZBOLZEN .38-16 X .
14	BS165X79MA	SPRING-EXTENSION
15	BS037X66MA	BELT-SECONDARY 47.10
16	BS015X84MA	MUTTER, CENTERLOCK .38-
17	BS423238MA	IDLER PULLEY
18	BS092148MA	BREMSFEDER ASSY
19	BS092169MA	LOCHSTOPFEN
20	BS092128MA	PULLEY-JACKSHAFT 46
21	BS093052E701
22	BS0031X4MA	PIN, HAIR .56D - .09
23	BS17X171ZMA	UNTERLEGSCHEIBE.18.88.05 FLAT
24	BS030X33
25	BS774089MA	PULLEY BS 4'' PLASTIC
26	BS092130 Z
27	BS0025X7MA	MOTORBOLZEN 3/8 X 1.25
28	BS010851ZMA	UNTERLEGSCHEIBE
29	BS017X91MA	WASHER,FLAT .54.81
31	BS165X80MA	ZUGFEDER
32	BS17X168ZMA	UNTERLEGSCHEIBE.39-1.2-.11 FL
33	BS092220E701MA	LEITROLLENHALTERUNG ASSY
34	BS092180MA	SPACER-BUSHING
35	BS26X249MA	SCREW-.312-18X.75
36	BS015X79MA	NUT.31-18 FLANGELOCK
37	BS092115E701
38	BS092158E701MA	STREBE, KIPPHEBEL
39	BS17X103MA	UNTERLEGSCHEIBE.53X1X.12 FLAT
40	BS093097E701MA	BRACKET ADJUSTERS
41	BS092138E701
42	BS092109E701MA	BRKT ASSY LH LIFTER
43	BS092132ZMA	EINSTELLMUTTER
44	BS092134ZMA	EINSTELLSTANGE; JUSTIERSTANGE
45	BS092139E701MA	BRACKET, LH COVER
46	BS092116ZMA	ROD-BELT GUIDE
47	BS015X88MA	NUT,CENTERLOCK Z .3
48	BS092104E701MA	BRKT - HINGE
49	BS092159ZMA	DEFLEKTORSTANGE
50	BS093088E701MA	HALTERUNG ASSY HEBEVORRICHTUNG
51	BS093096E701MA	AUFHANGUNGSVERBINDUNG
52	BS028X23MA	PUSH CAP.375
53	BS166X34MA	TORSIONSFEDER
54	BS092100MA	DEFLECTOR-CHUTE-46
55	BS092103E701MA	DEFLEKTOR, SCHACHT
56	BS092140E701MA	DECKELHALTERUNG LINKS
57	BS165X86MA	SPRING-EXTENSION
58	BS017X57MA	UNTERLEGSCHEIBE.47.72 16G FLT
59	BS002X53MA	BOLT,CRG .31-18 X 0.
60	BS091739ZMA	HANGER ROD
61	BS93087E701
62	BS17X124MA	WASHER.40.81 16G FLT
63	BS092119SEMA	VORDERE AUFHANGUNG HALTER
65	BS092137MA	ROLLER
66	BS030X49MA	PIN-COTTER.13D-1.25L
67	BS01X111MA	BOLT-HEX.37-16X1.50 Z
68	BS492574MA	JACKSHAFT HSNG
69	BS091754MA	SCREW,GUIDE 5/16-18 Z
70	BS092117E701MA	EINZELMESSER
71	BS17X166MA	WASHER.62-1.7 11G - B
72	BS17X165MA	UNTERLEGSCHEIBE.62-1.0-.18 FL
73	BS15X100MA	MUTTER.56-18 REG UNF Z-Y
74	BS092163MA	STRIP-INDICATOR
76	BS092466MA	ADAPTER- MESSER
77	BS002X73MA	BOLT,CRG .31-18X0.50
78	BS094025MA	BOLZEN-RADSTELZE
79	BS092683MA	WHEEL, GUAGE
80	BS92259E701
81	BS92258E701
82	BS17X102MA	UNTERLEGSCHEIBE-MAHER
83	BS92257E701
84	BS009X42MA	BOLT,SHD .38-16X.600D
--	BS403337A
