Echo SRM-2100 - String Trimmer, S/N:001001 - 159490 (Type 1) Fuel System, Driveshaft, Handles, Throttle, Switch Ricambi

Leitung(Gummi) CS-3000, CS-

Articolo numero:
16-V471-001200
Posizione:
2
3.75 €
Tutti i prezzi includono l'IVA nell'UE, in più spedizione
Quantità:
Dettagli di contatto Sicurezza del prodotto
Articolo aggiunto al carrello1
yellow Verrà ordinato per te: tempo di consegna circa 5 giorni lavorativi.

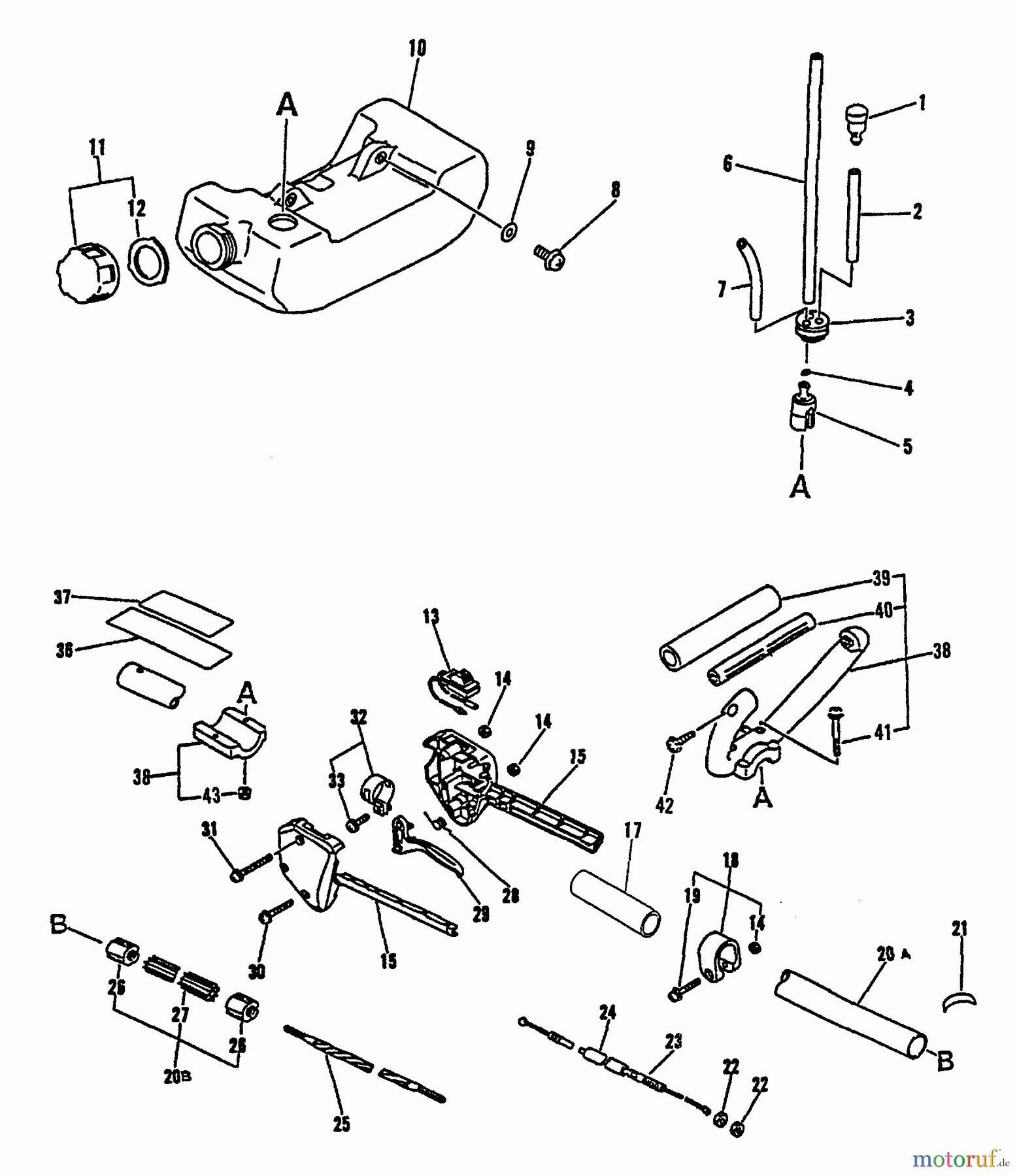

Echo Trimmer, Faden / Bürste SRM-2100 - Echo String Trimmer, S/N:001001 - 159490 (Type 1) Fuel System, Driveshaft, Handles, Throttle, Switch
PosizioneArticolo numeroDescrizione
1 16-131300-56430Entlüftungsventil CS-3500-1/
2 16-V471-001200Leitung(Gummi) CS-3000, CS-
3 Echo Dichtring HC-1500/HCR-1500/16-132115-46730Dichtring HC-1500/HCR-1500/
4 16-132013-09820Clip CS-2600/-3700/SRM-250/GT-
5 16-131205-07321Benzinfilter CS-3500/2600,SRM-
6 16-V471-001190Benzinleitung (Gummi) SRM-
7 16-132010-56330Überlaufleitung 9cm CS/ES/GT/
8 16-900238-05016Schraube 5*16
9 Echo Scheibe(Eisen) CS-2600/PB-250/16-900603-00005Scheibe(Eisen) CS-2600/PB-250/
10 16-131005-44331Tank
11 16-131004-55830Tankdeckel HC-1500, HC-2400,
12 16-131016-40930Dichtung ES-2000, HC-2100,
13 16-163401-55631Stop-Schalter PPT-2100,PPT-
14 16-900500-00005Mutter PPT-300ES/T-226 EDR-
15 16-178003-52130Plastikgehäuse, Gasgriff o.
17 16-351213-52130Handgriffgummi HCA-2400 HCA-
18 16-610272-52130Schelle HCA-2500, PAS-2400,
19 16-900242-05030Schraube
20 16-610609-44730Gestänge
20A 16-610609-44730Gestänge
20B 16-610609-44730Gestänge
21 16-890152-04930Aufkleber
22 16-900502-00006Mutter SRMF-340 6 (3N)
23 16-178001-44430Gaszug GT-2400/HCA-2400/SRM-
24 16-178127-50330Tülle
25 16-C506-000390Antreibswelle flexibel C-225S
26 16-610246-44730Führung HCA-2400
27 16C507000260
28 16-178043-42230Feder SRM-4000L/SRM-5000L
29 16-178010-52130Gashebel SRM-5000 SRM-4000,
30 Echo Schraube CS-3500, HCA-2500,16-900242-05025Schraube CS-3500, HCA-2500,
31 16-900242-05035Schraube SRM 4000 L/ 5000 L
32 16-301200-29431Aufhänger
33 16-900242-05014Schraube(Eisen) CS-3500, SRM
36 1689016049630
37 1689016052730
38 1635120152130
39 16-351213-51730Griffpolster SRM-2100SB
40 16-351210-51730Griff SRM-2100SB
41 16-900242-05035Schraube SRM 4000 L/ 5000 L
42 16-900246-05030Schraube 5x30 (10), SRM-2100SB
43 16-900500-00005Mutter PPT-300ES/T-226 EDR-
