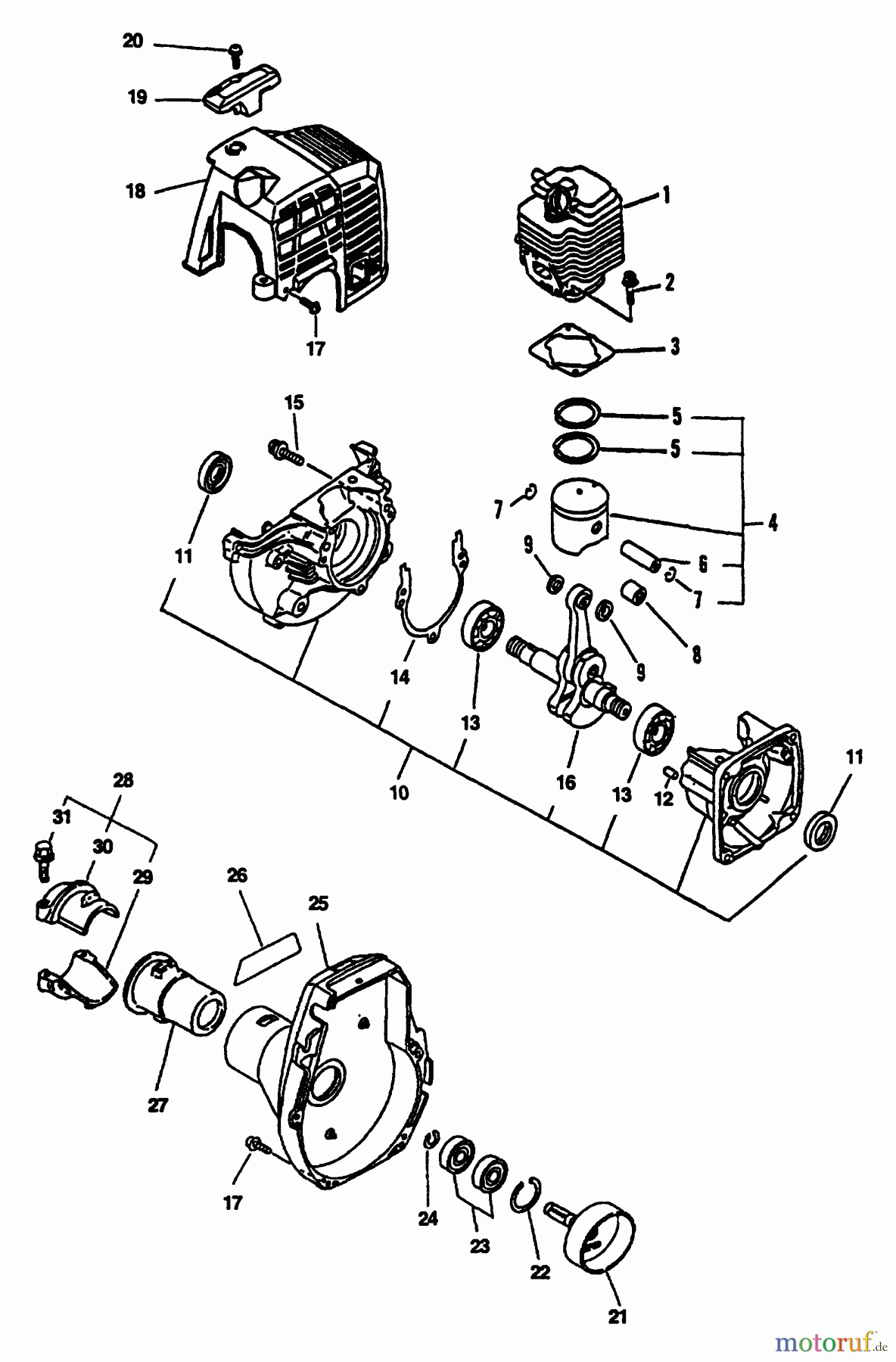

Echo GT-2400 - String Trimmer (Type 1E) Engine, Fan Housing Cover Ricambi

• Start
• Echo
• Trimmer, Faden / Bürste
• GT-2400 - Echo String Trimmer (Type 1E)
• Engine, Fan Housing Cover

16

Articolo numero:

16

Posizione:

14

non più disponibile

Posizione		Articolo numero	Descrizione
1		16-101003-08960	Zylinder mit Kolben HCA-2400/
2		16-900162-05022	Schraube CS-3500,-3501,SRM-
3		16-101010-44332	Fußdichtung (Papier) SRM-2010/
4		16-100000-09563	Kolben kpl. PB 2455/ES-2000/
5		16-100011-09560	Kolbenring
6		16-100013-11520	Kolbenbolzen SHR-170SI/T-226
7		16-100015-04630	Sicherungsring(Eisen) CS-2600/
8		16-V553-000010	Nadellager CS-2600
9		16-100014-11520	Distanzring(Eisen) SHR-170Si/
10		16	16
11		16-100212-42031	Simmerring/T-226 PB-2400/SRM-
12		16-V622-000020	Stift
13		16-94035-36201	Kugellager EA-410/SHR-170SI
14		16	16
15		16-900162-05028	Schraube SHR-170SI/PB-250/T-
16		16	16
17		16-900163-04016	Schraube
18		16-101514-48930	Zyl.Abdeckung HCA-2400/HCA-
19		16-159912-54130	Zylinderschutz HCA-2400
20		16-900238-05016	Schraube 5*16
21		16-175005-48931	Kupplungstrommel HCA-2400/2410
22		16-900702-00028	Seegerring, innen, 28mm
23		169405106001
24		16-900701-00012	Seegerring außen 12mm
25		16-101503-52131	Kupplungsgehäuse HCA-2410
26		1689011252730
27		1661091052730
28		1661090352130
29		1661092352130
30		16-610922-51030	Halter GT-2150
31		16-900142-05025	Schraube HCA-2400, PAS-2400,
		16SB1027
		1699999999999
		16-101010-44332	Fußdichtung (Papier) SRM-2010/
		16-145866-42031	Dichtung HC-2410/SRM-250/GT-
		16-V104-000160	Dichtung, Auspuff PB-2400, GT-
		16	16
		16-V103-001360	Dichtung, Ansaugleitung SHR-
		16-130016-42031	Dichtung(Papier)
		16-130010-05960	Dichtung
		1690050
		1690008
		1690248
