Milwaukee Bohren und Meißeln ältere Geräte Bohrhämmer PLH30XE BOHRHAMMER Ricambi

SPINDLE SLEEVE 4931407945

Articolo numero:
4931407945
Posizione:
0444
234.01 €
Tutti i prezzi includono l'IVA nell'UE, in più spedizione
Quantità:
Dettagli di contatto Sicurezza del prodotto
Articolo aggiunto al carrello1
yellow Sarà ordinato per te. Tempi di consegna da 5 a 14 giorni lavorativi circa.

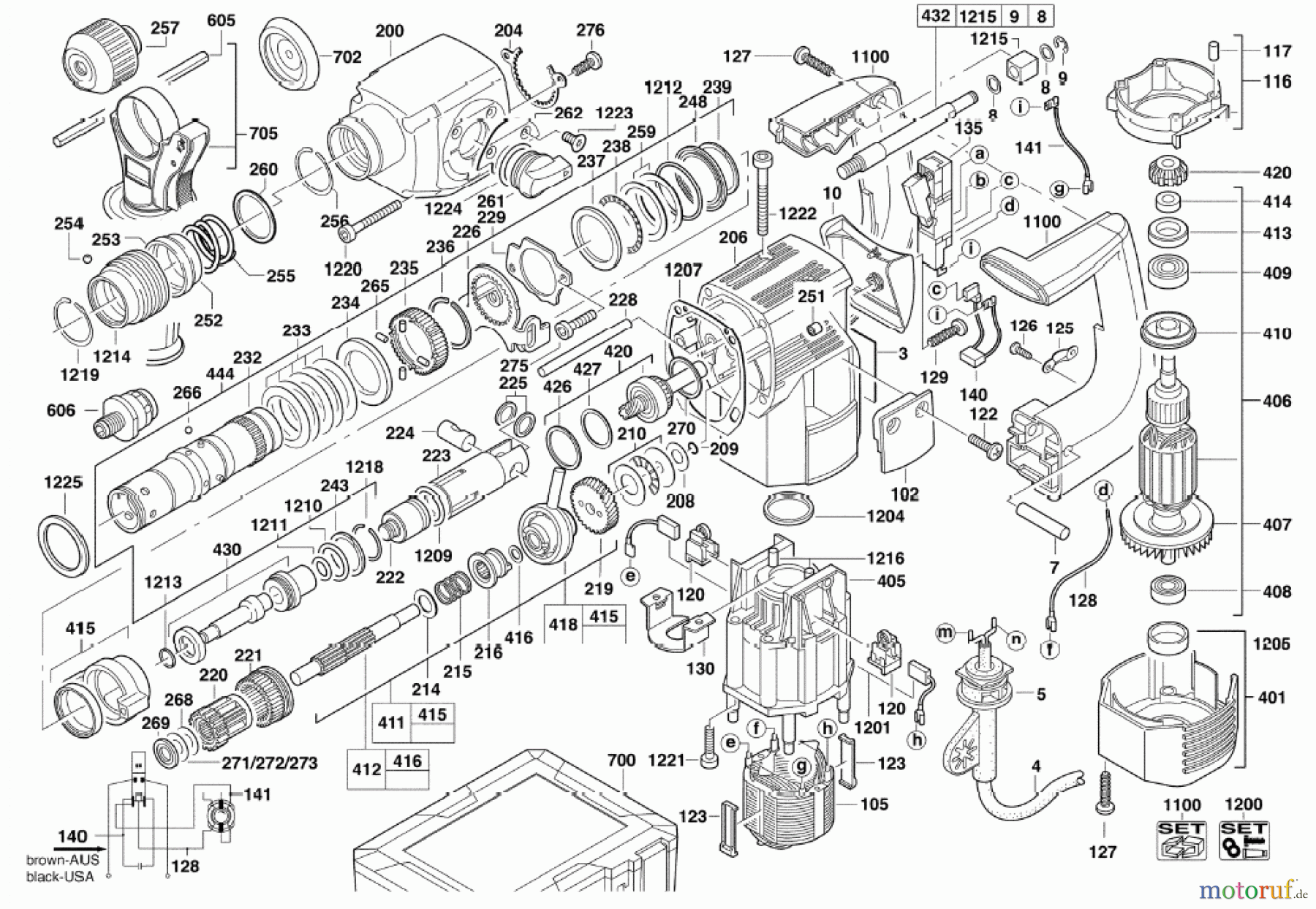

Milwaukee Kabelgeführte Geräte Bohren und Meißeln ältere Geräte Bohrhämmer PLH30XE BOHRHAMMER
PosizioneArticolo numeroDescrizione
0003 4931415199RATING PLATE 4931415199
0004 4931250832CONNECTION CABLE 4931250832
0005 4931392174PROTECTING COVER 4931392174
0007 4931623456GROOVED DOWEL PIN 4931623456
0008 4931623094WASHER 4931623094
0009 4931621834WASHER 4931621834
0010 4931360377GEAR BOX COVER 4931360377
0102 4931360518PROTECTIVE CAP 4931360518
0105 4931342802ELECTRIC FIELD 4931342802
0116 4931353230AIR DEFLECTOR RING 4931353230
0117 4931405705HOLDING-DOWN DEVICE 4931405705
0120 4931382268BRUSH HOLDER 4931382268
0122 4931624518SCREW 4931624518
0123 4931342808CENTERING LEDGE 4931342808
0125 4931256500CABLE COLLAR 4931256500
0126 4931624516SCREW 4931624516
0128 4931623541WIRE 4931623541
0129 4931622153SCREW 4931622153
0130 4931356869BEARING COVER 4931356869
0135 4931384896SWITCH BOARD 4931384896
0140 4931624270CAPACITOR 4931624270
0141 4931624269WIRE 4931624269
0200 4931384040GEAR BOX 4931384040
0204 4931331685WASHER 4931331685
0206 4931382948GEAR BOX 4931382948
0208 4931623637WASHER 4931623637
0209 4931941082O-RING N874701 5X1 4931941082
0210 4931360041THRUST BEARING 4931360041
0214 4931621983DISC 4931621983
0215 4931379589PRESSURE SPRING 4931379589
0216 4931379649COUPLING SLEEVE 4931379649
0219 4931379097REDUCTION GEAR 4931379097
0220 4931384917PLANET GEAR 4931384917
0221 4931331769INTERN.GEARED WHEEL 4931331769
0222 4931387332PERCUSSION BODY 4931387332
0223 4931379587CYLINDER 4931379587
0224 4931331623CYLINDRICAL BOLT 4931331623
0225 4931400589WASHER 4931400589
0226 4931331752SLIDER 4931331752
0228 4931623081PIN 4931623081
0229 4931331787LATCH PLATE 4931331787
0232 4931384922SPINDLE SLEEVE 4931384922
0233 4931379071CUP SPRING 4931379071
0234 4931379110CLUTCH DISC 4931379110
0235 4931392752SPINDLE GEAR 4931392752
0236 4931384919SPRING RING 4931384919
0237 4931623199WASHER 4931623199
0238 4931331713THRUST BEARING 4931331713
0239 4931343187LOCKING WASHER 4931343187
0243 4931387328THRUST COLLAR 4931387328
0248 4931343049WASHER 4931343049
0251 4931219424NEEDLE BEARING 4931219424
0252 4931382921SLEEVE 4931382921
0253 4931379875RING STOP 4931379875
0254 4931805437BALL 4931805437
0255 4931331754PRESSURE SPRING 4931331754
0256 4931945764SPRING RING 4931945764
0257 4931379739ADAPTER 4931379739
0259 4931623200WASHER 4931623200
0260 4931623234WASHER 4931623234
0261 4931392506SWITCH HANDLE 4931392506
0262 4931379108LATCH PLATE 4931379108
0265 4931624045CYLINDER PULLEY 4931624045
0266 4931805390BALL 4931805390
0269 4931379420SPACER 4931379420
0270 4931409507SUPPORTING PLATE 4931409507
0275 4931623602SCREW 4931623602
0276 4931379708SCREW 4931379708
0401 4931360732MOTOR COVER 4931360732
0405 4931384337MOTOR HOUSING 4931384337
0406 4931360413ARMATURE 4931360413
0407 4931342793FAN 4931342793
0408 4931341740GROOVED BALL BEAR. 4931341740
0409 4931624101BALL BEARING 4931624101
0410 4931353260INSULATING DISC 4931353260
0411 4931384561REPAIR KIT 4931384561
0412 4931384864REDUCT. GEAR SHAFT 4931384864
0413 4931356522SEAL RING 4931356522
0414 4931353238SPACER 4931353238
0415 4931384557BUSHING 4931384557
0416 4931624264DISC N874237 A 10,1X18X1 4931624264
0418 4931384560REPAIR KIT 4931384560
0420 4931379098PINION SHAFT 4931379098
0426 4931616614LOCKING RING 4931616614
0427 4931622564DISC N874237 A16,1X26X1 4931622564
0430 4931379881REPAIR KIT 4931379881
0432 4931400216REPAIR KIT 4931400216
0444 4931407945SPINDLE SLEEVE 4931407945
0605 4931384434DEPTH GAUGE 4931384434
0606 4931382287CHUCK ADAPTER 4931382287
0700 4931415335CARRYING CASE 4931415335
0702 4932265320DUST CATCHER Dust coll ring P1AM 4932265320
1100 4931384324HANDLE COMPL. 4931384324
1200 4931384723MAINTENANCE SET 4931384723
1201 4931369477CARBON BRUSH SET 4931369477
1204 4931623124O-RING 4931623124
1205 4931360781RUBBER SLEEVE 4931360781
1207 4931331735GASKET 4931331735
1209 4931379705SEAL RING 4931379705
1210 4931624492SEAL RING 4931624492
1211 4931387348O-RING 4931387348
1212 4931623135O-RING 4931623135
1213 4931623232SEAL RING 4931623232
1214 4931412209SLEEVE 4931412209
1215 4931392502DAMPING ELEMENT 4931392502
1216 4931331549HOLDING-DOWN DEVICE 4931331549
1218 4931623636RING 4931623636
1220 4931623521SCREW 4931623521
1221 4931623520SCREW 4931623520
1222 4931623519SCREW 4931623519
1223 4931379109SCREW 4931379109
1224 4931623293O-RING 4931623293
1225 4931379585FELT WASHER 4931379585
