Ryobi RHP5135 Seite3 Ricambi

SCREW RHP 5135

Nota: Questo articolo è4 volte installato nel dispositivo, il prezzo è per pezzo!
Articolo numero:
5131006284
Posizione:
13
non più disponibile

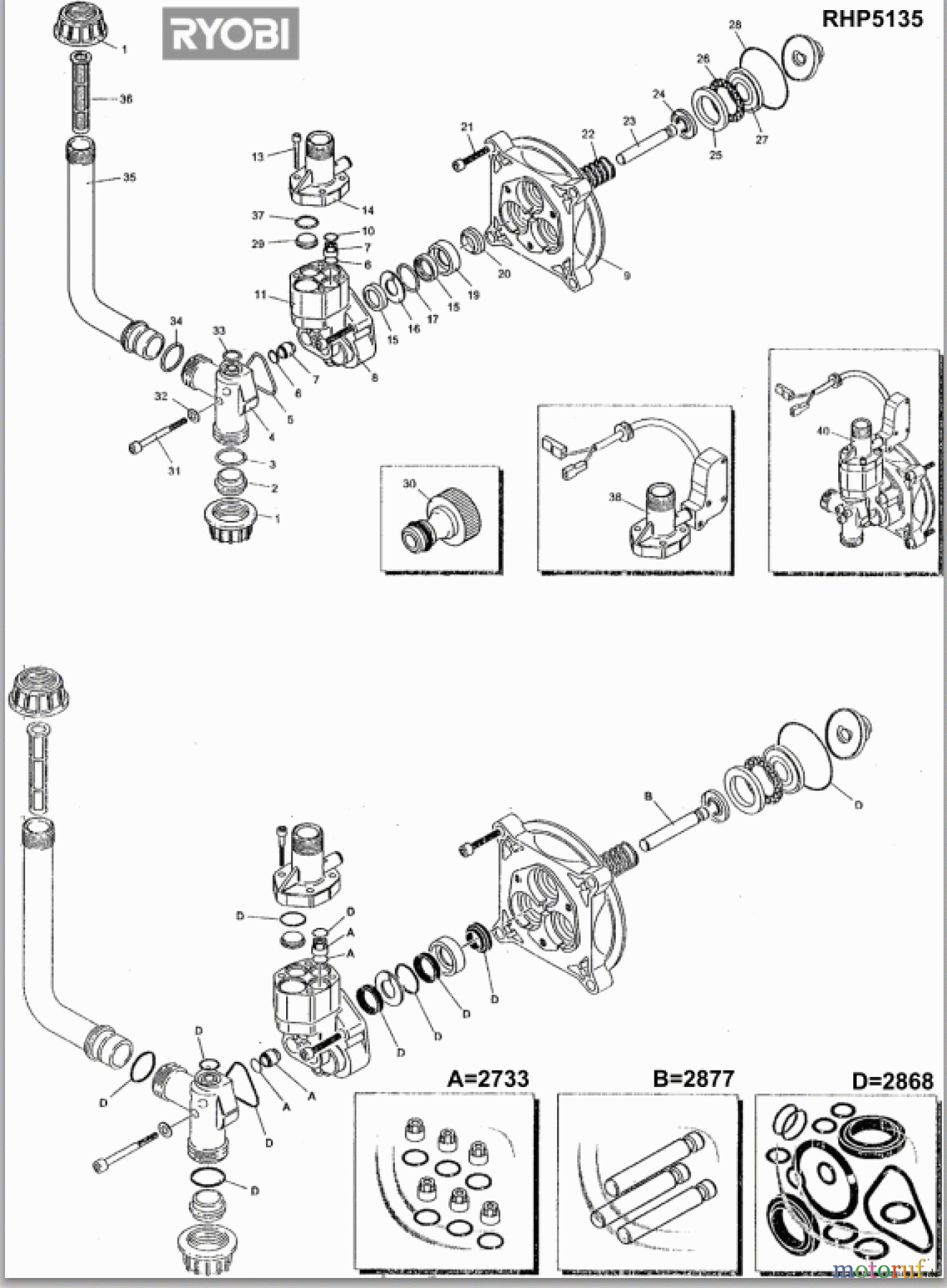

Ryobi Hochdruckreiniger RHP5135 Seite3
PosizioneArticolo numeroDescrizione
01 5131009303RING NUT RHP5135/5140
02 5131008757PLUG RHP 5135
03 5131006173O-RING RHP410/5140
04 5131006333SUCTION FITTING RHP 5135
05 5131017089JOINT RHP410
06 5131005765O-RING RHP410
07 5131006312VALVE RHP5135
08 5131013052SCREW M6X30 RHP51354120/4130/5140
09 5131017087PLATINE GUIDE PISTON RHP5135/4121/3
10 5131001171O-RING
11 5131006275PIECE PLUS FOURNI,ANNULER VOTRE CDE
13 5131006284SCREW RHP 5135
14 5131006282OUTLET FITTING RHP 5135
15 5131006555GASKET RHP410/4121/4130/5140
16 5131006278SUPPORT RING RHP410/4121/4130/5140
17 5131012870O RING RHP 5135
19 5131006277BUSHING RHP5135/4121/4130/5140
20 5131005770SEAL RHP410/4121/4130/5140
21 5131006575SCREW M6X25 EHP4011
22 5131006286SPRING RHP410/4121
23 5131015905PISTON DIA.12 RHP4121/4130/5140
24 5131006285SPRING PLATE RHP410/4121/4130/5140
25 5131005752RAIL RHP410/4121/4130/5140
26 5131005547BEARING EHP4011/371 RHP3710/4130/41
27 5131005533BEARING EHP4011/371 RHP3710/4130/41
28 5131005754O-RING RHP5135/4121/4130/5140
29 5131006287SEAT VALVE RHP 5135
30 5131005436CONNECTOR
31 1000012970VIS RHP 5135
32 1000016095RONDELLE RHP 5135
33 5131006296O-RING RHP410
34 5131006305O RING RHP 5135
35 5131006300SUCTION TUBE RHP 5135
36 5131005397FILTER
37 5131008758O-RING 12.42X1.78
38 5131006770TSS ASSEMBLY RHP5135
40 5131006771PUMP ASSEMBLY RHP5135
A 5131008155VALVE KIT RHP
B 5131008226PISTON KIT
D 5131008224GASKET KIT
