Topflite 28 VE 16AED0I-649 (1999) Electric motor, Cutter block, Wheels Ricambi

COVER

Articolo numero:
079.85.274
Posizione:
56
Modell Year:
28 VE / 1999 128 VE / 1999
non più disponibile

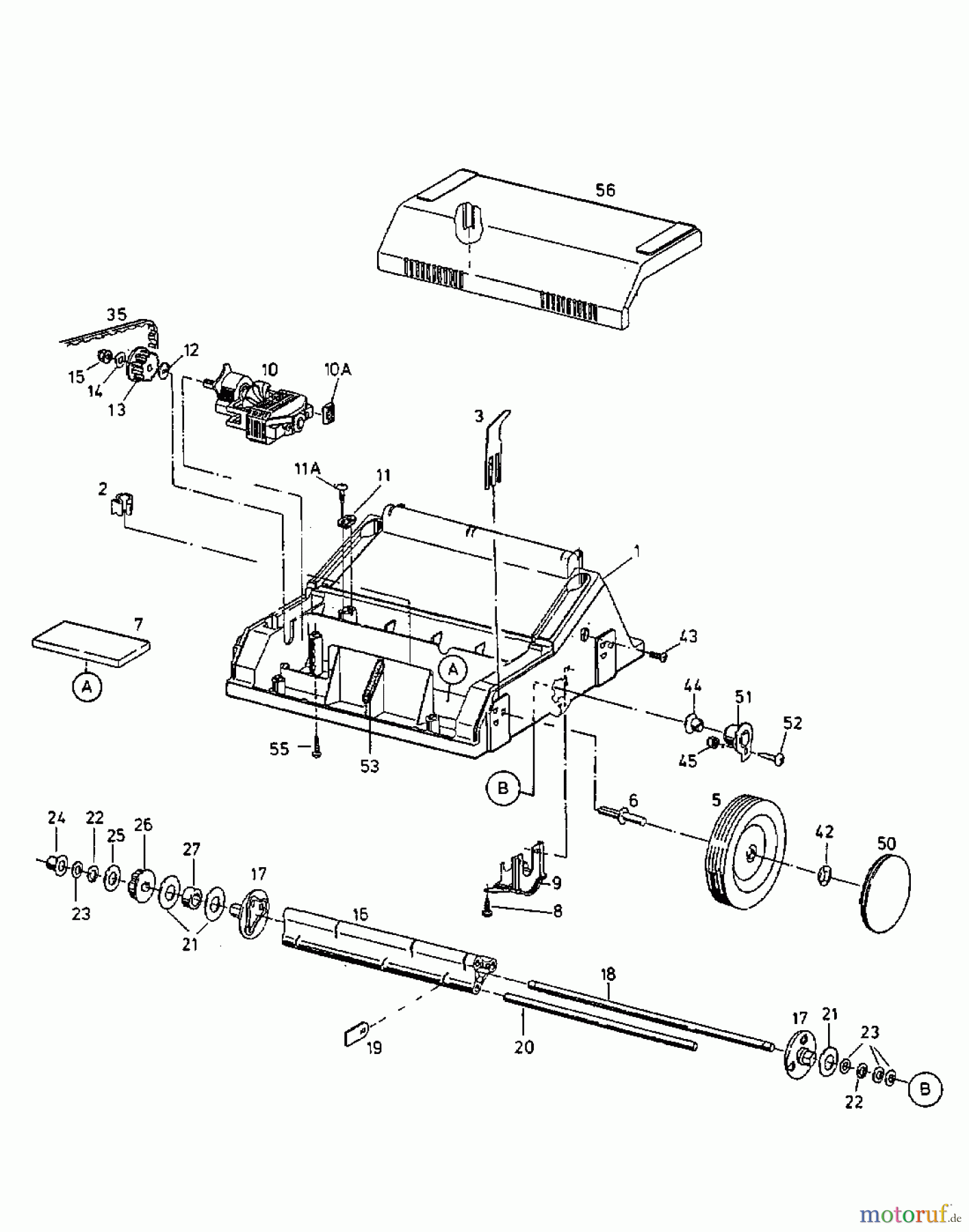

Topflite Electric verticutter 28 VE 16AED0I-649 (1999) Electric motor, Cutter block, Wheels
PosizioneArticolo numeroDescrizione
1 079.85.262Housing
1A 079.85.265AHOUSING
2 000.06.371TERMINAL,.25 FEMALE TAB INSUL.
3 079.29.490Adjusting lever
4 000.34.303Plug
5 079.30.121Wheel
6 079.85.312Wheel shaft
7 079.85.329Weight
8 000.02.558Screw
9 079.85.273COVER
10 079.12.704ELECTRIC MOTOR 230V 450W
10.1 092.33.962FAN
10A 079.11.380Rubber buffer
11 079.38.747Cable clamp
11A 000.02.558Screw
12 079.85.291washer
13 079.85.290toothed pulley
14 736-0700WASH:FLAT:8.4 x 16 x 1.60
15 712-0692NUT:HEXLK:M8-1.25 NYLON DIN985
16 079.86.812DRIVE SHAFT
17 079.85.289Washer
18 079.85.271AXLE-FR
19 079.85.268Blade
20 079.85.269LINK, PARALLEL
21 000.20.647WASHER
22 Topflite Circlip DIN 47128.3591.12Circlip DIN 471
23 24.6273.40Shim
24 079.85.317COLLAR
25 000.20.639Washer
26 079.85.295Pulley
27 079.85.314Bushing
28 000.70.563CABLE TIE
29 731-2126668REAR FLAP
29A 731-2126637REAR FLAP
30 23.5421.82Screw
31 24.6486.13Washer
32 24.1426.09Nut
33 079.85.286Weight
34 079.06.259Handle tube
35 000.75.966SUPER TORQUE
36 000.13.064Cable clamp
37 079.06.258LOWER HANDLE
38 749-1163UPPER HANDLE STD
39 000.05.009Rivet
40 079.85.320FASTENING CLAMP
41 24.6486.13Washer
42 000.02.541CLAMP RIN
43 22.6417.39Screw
44 079.85.296FLANGE BEARING 12/18/24x16/3
45 712-0675NUT:HEX:M5 x.80:DIN 985
46 725-1862ELECTRIC-SWITCH CCS 59
48 079.80.874Grass bac
49 079.80.247BAIL
50 720-0348696HUB CAP
50A 720-0348637HUB CAP
51 079.85.272Bearing seat
52 23.5421.91Screw
53 000.37.516RUBBER
54 22.3417.31Screw
55 000.02.483Screw
56 079.85.274COVER
56A 079.85.277AHOOD
57 736-0700WASH:FLAT:8.4 x 16 x 1.60
58 24.8191.18L-washer
59 000.02.377WING NUT
60 000.02.502SCR: M4x16: PHI
61 22.3419.28Screw
62 Topflite NUT:HEX:M8-1.25 DIN 934712-0690NUT:HEX:M8-1.25 DIN 934
63 736-0649WASHER:LOCK:B8:DIN 12
