Raiffeisen 8/76 130-510C628 (1990) Front axle Ricambi

USE 15694A-0637

Articolo numero:
15694
Posizione:
56
DINNORM:
15694
Modell Year:
8/76 / 1990
non più disponibile

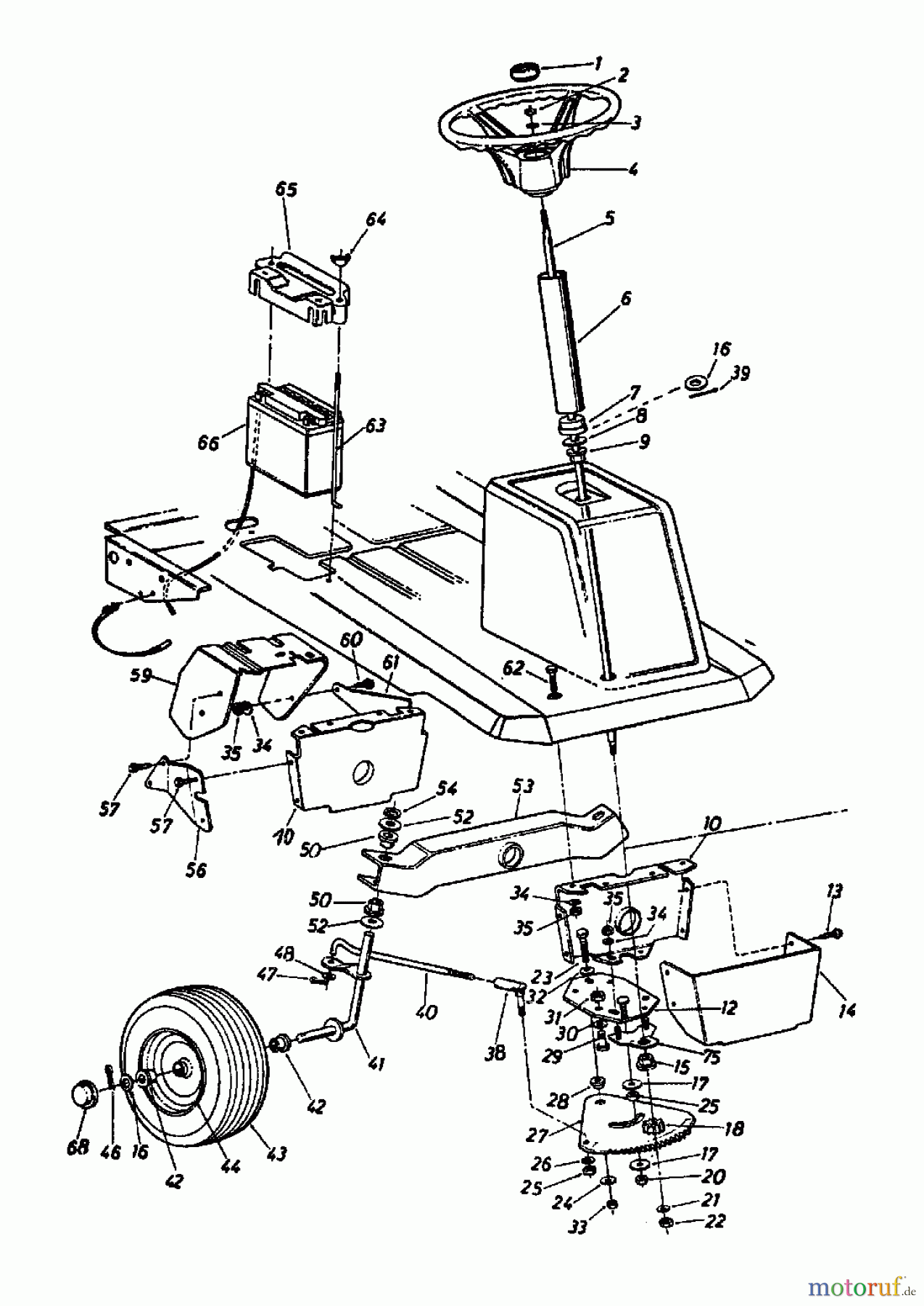

Raiffeisen Lawn tractors 8/76 130-510C628 (1990) Front axle
PosizioneArticolo numeroDescrizione
1 731-0220CAP:WHL:STEERING
2 Raiffeisen NUT-HEX CENTER L712-0237NUT-HEX CENTER L
3 Raiffeisen WASH:BLVL:.340 x .872 x .060736-0242WASH:BLVL:.340 x .872 x .060
4 731-0805STEERING WHEEL
5 738-0700SHAFT-STEERING
6 750-0568SPACER
7 731-0651BUSHING
8 Raiffeisen FL-WASH .640 IDX1.24 OD X .06736-0187FL-WASH .640 IDX1.24 OD X .06
9 Raiffeisen BRG:HEX FLNG741-0225BRG:HEX FLNG
10 15613
12 17653
13 710-0776ASCREW-HEX WASH HD
14 15608COVER-STEERING GEAR
15 Raiffeisen BRG:HEX FLNG741-0225BRG:HEX FLNG
16 Raiffeisen WASH:FLAT:.635 x 1.589 x.060736-0285WASH:FLAT:.635 x 1.589 x.060
17 Raiffeisen WASH:FLAT:.380 x.1.380 x.125736-0320WASH:FLAT:.380 x.1.380 x.125
18 748-0290GEAR:STRG:PINION
20 Raiffeisen NUT:JAMLK:3/8-24:GR2:NYLON712-0116NUT:JAMLK:3/8-24:GR2:NYLON
21 736-0275WASH:FLAT:.344 x .688 x.065
22 Raiffeisen NUT-HEX CENTER L712-0237NUT-HEX CENTER L
23 710-0459HHCS:3/8-24:1.5:GR5:STD
24 Raiffeisen WASH:FLAT:.380 x.1.380 x.125736-0320WASH:FLAT:.380 x.1.380 x.125
25 Raiffeisen NUT:HEX:3/8-24:GR5712-0241NUT:HEX:3/8-24:GR5
26 Raiffeisen WASH:LOCK:3/8:REGULAR DUTY736-0169WASH:LOCK:3/8:REGULAR DUTY
27 717-0472ASEGMENT-STEERING
28 738-0541SPCR:STRG:SHLD
29 710-0689HEX.SCREW HHCS:1/2-13:.75NYLON
30 736-0160WASH:FLAT:.530x.930x.050
31 Raiffeisen NUT:HEX:1/2-13:GR5712-0206NUT:HEX:1/2-13:GR5
32 Raiffeisen SPRING WASHER .401 x.870 x.063736-0105SPRING WASHER .401 x.870 x.063
33 Raiffeisen NUT:HEX:3/8-24:GR5712-0241NUT:HEX:3/8-24:GR5
34 Raiffeisen WASHER:LOCK:5/16:SPLT:REG736-0119WASHER:LOCK:5/16:SPLT:REG
35 712-0267NUT:HEX:5/16-18:GR2
38 723-0156B/JOINT:3/8-24
39 Raiffeisen PIN:COT:SPLIT:1/8 X 1.0714-0115PIN:COT:SPLIT:1/8 X 1.0
40 747-0417ROD-TIE
41 15617A
41 15616A
42 741-0487
43 Raiffeisen VALVE - TUBELESS AIR734-0255VALVE - TUBELESS AIR
43 Raiffeisen TIRE 11.0X4.0X4.0734-1382TIRE 11.0X4.0X4.0
43 734-1454
44 734-1455
44 737-0146FITTING-GREASE
46 Raiffeisen PIN:COT:1/8 x 1.25714-0470PIN:COT:1/8 x 1.25
47 Raiffeisen PIN:COT:SPLIT:1/8 X 1.0714-0115PIN:COT:SPLIT:1/8 X 1.0
48 Raiffeisen WASH:FLAT:.406 X .875 X.059736-0300WASH:FLAT:.406 X .875 X.059
50 Raiffeisen BRG:HEX FLNG741-0225BRG:HEX FLNG
52 736-0156WASH:FLAT:.625x1.125x.090
53 15610
54 726-0159BCAP .625"
56 15694USE 15694A-0637
57 710-0776ASCREW-HEX WASH HD
59 17677PEDAL ASSY-CLUTCH
60 710-0118HHCS:5/16-18:.75:GR2:STD
61 15699AUSE 15699A
62 710-0118HHCS:5/16-18:.75:GR2:STD
63 711-0222BATTERY HOLD DOWN
64 712-0113WING NUT
65 731-0708CVR:BAT
66 725-0514AUSE 753-0607
68 Raiffeisen HUB CAP IN FRONT731-0484AHUB CAP IN FRONT
75 17655
