Ok 46 EOK 18C-66G-667 (2001) Basic machine Ricambi

HANDLE BRKT.L.H.

Articolo numero:
782-3085638
Posizione:
42
Modell Year:
45 E / 2001 46 E / 2001 46 EOK / 2001
non più disponibile

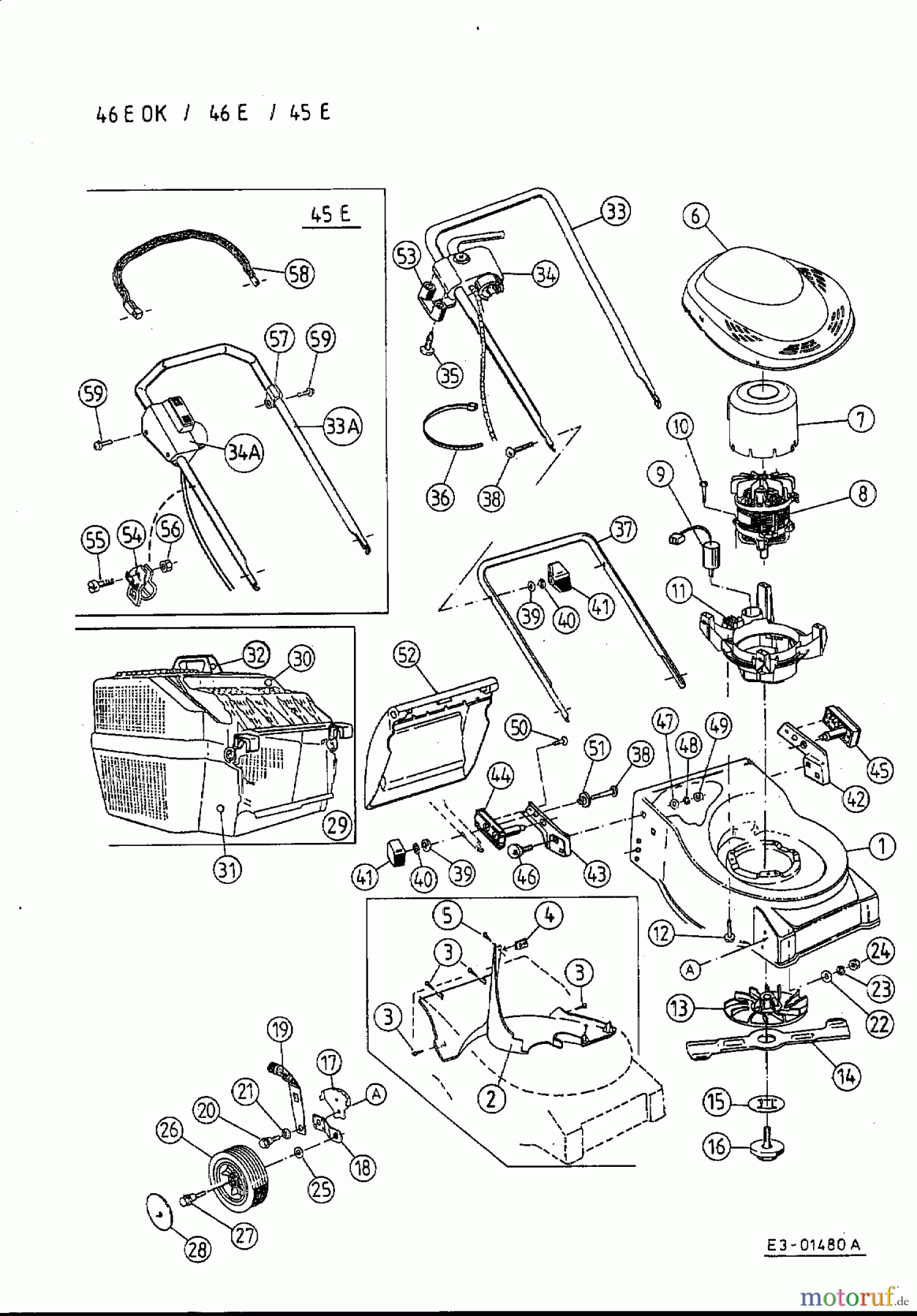

Ok Electric mower 46 EOK 18C-66G-667 (2001) Basic machine
PosizioneArticolo numeroDescrizione
1 682-0254638MOWER HOUSING 18" MTD RED
2 731-2171ALOWER COVER
3 Ok SCR:Sternantrieb:M6x20 WN 1452710-1704SCR:Sternantrieb:M6x20 WN 1452
4 712-0400U-NUT: # 10-16
5 710-0351SCR:B:#10-16:0.5":PANPHI
6 731-2183637SHROUD (ELECTRIC-MOTOR), BLACK
7 731-2205AIR GUIDE COVER
8 724-0301ELECTRIC MOTOR 230V, 1500W
9 729-1136CONDENSER 16 uF
10 000.02.495SCREW
11 731-2184APROTECTION BOX
12 000.02.498SCREW-Sternantrieb HD 5/16-18
13 Ok FAN ASM:ELEC631-0132FAN ASM:ELEC
14 742-0815MOWER BLADE
15 Ok PLT:LOCK:BLADE782-7051PLT:LOCK:BLADE
16 Ok BOLT ASM:BLADE:T-DECK:ELEC624-0075BOLT ASM:BLADE:T-DECK:ELEC
17 079.30.313ADJUSTING PLATE
18 Ok ADJUSTING ARM782-0617AADJUSTING ARM
19 682-0232LVR ASM:HGT:L0-WHL
20 738-1030SCREW - INDIVIDUAL HEIGHT ADJ.
21 Ok WASH:BELL:25mmODx12.2IDx1.6736-0651WASH:BELL:25mmODx12.2IDx1.6
22 736-0701WASH:FLAT:8.4x24x2.00 DIN 9021
23 736-0708LOCK WASHER SCHNORR D 8
24 Ok NUT:HEX:M8-1.25 DIN 934712-0690NUT:HEX:M8-1.25 DIN 934
25 736-0695WASHER
26 Ok WHEEL DIA 180mm, BAR, SLEEVE B734-1897WHEEL DIA 180mm, BAR, SLEEVE B
27 079.29.166Wheel bolt
28 720-0334662HUB CAP WITH MTD LOGO, PREMIUM
29 811-00908SG: GRASSBOX COMPL. BLACK
30 731-2178637GRASSBOX - UPPER PART - BLACK
31 731-2179637GRASSBOX - LOWER PART - BLACK
32 731-2180637GRIP BLACK
33 749-1213UPPER HANDLE
33A 749-1201UPPER HANDLE
34 725-1838ASWITCH-PLUG-COMBINAT
34A 725-1910ELECTRIC SWITCH BAIL
34B 079.05.304WIRE SLEEVE
34C 21.1441.79HEX. SCREW M8X55 DIN 933-8.8
35 000.02.476SCREW
36 000.70.563CABLE TIE
37 Ok LOWER HANDLE749-1212637LOWER HANDLE
38 Ok BOLT:CRG:M8x1.25x50 DIN 603710-1719BOLT:CRG:M8x1.25x50 DIN 603
39 736-0700WASH:FLAT:8.4 x 16 x 1.60
40 736-0689WASH:LOCK:B 8.4:DIN 6798
41 000.02.377WING NUT
42 782-3085638HANDLE BRKT.L.H.
43 782-3084638HANDLE BRKT.R.H.
44 731-2185HANDLE BRACKET RIGHT
45 731-2186HANDLE BRACKET LEFT
46 22.3419.24Screw
47 736-0700WASH:FLAT:8.4 x 16 x 1.60
48 736-0708LOCK WASHER SCHNORR D 8
49 Ok NUT:HEX:M8-1.25 DIN 934712-0690NUT:HEX:M8-1.25 DIN 934
50 000.02.469PT - Screw
51 079.06.307INSULATING WASHER
52 731-2181637DEFLECTOR
53 726-0366CABLE CLAMP
54 079.06.416CABLE CLAMP
55 21.6421.76Screw
56 712-0689NUT:HEX:M6-1:DIN 934
57 731-1823LEVER SUPPORT L.H.
58 731-2041SHIFT LEVER
59 000.02.483Screw
