Wolf-Garten Scooter Pro Hydro 13A221HD650 (2018) Choke- and throttle control, Engine pulley, Engine accessories Ricambi

NUT:FLGLK:3/8-16:GR2

Articolo numero:
712-04242
Posizione:
5
Description:
3/8-16
Modell Year:
LR2 NR76 / 2018 Scooter Hydro / 2018 Scooter Pro Hydro / 2018
non più disponibile

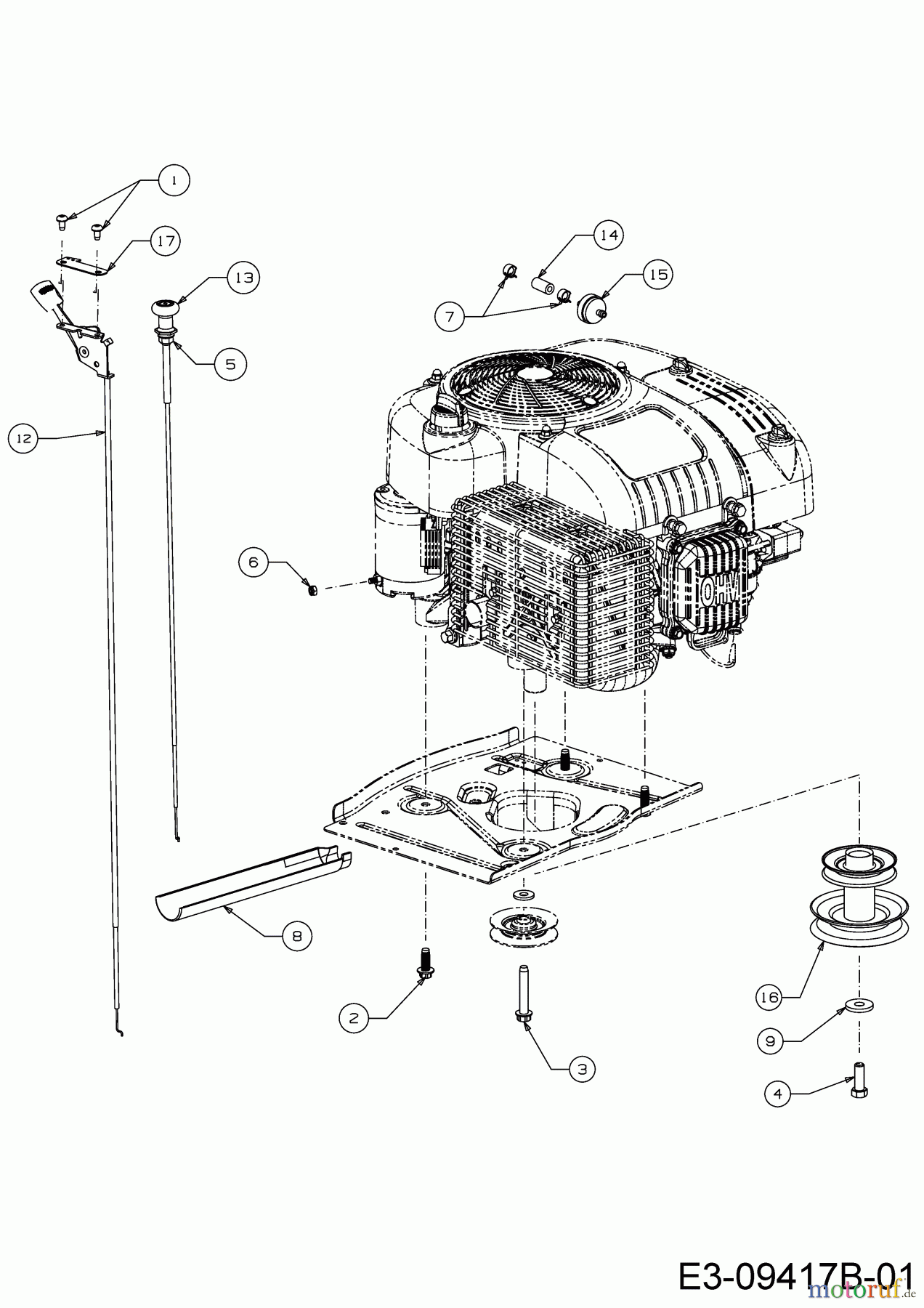

Wolf-Garten Lawn tractors Scooter Pro Hydro 13A221HD650 (2018) Choke- and throttle control, Engine pulley, Engine accessories
PosizioneArticolo numeroDescrizione
1 710-04483SCR:TT:1/4-20:0.500 PANTRXI
2 Wolf-Garten SCR.TT:3/8-16:1.000:HEXINDWSH710-04683CSCR.TT:3/8-16:1.000:HEXINDWSH
3 710-05446SCR:TT:3/8-16:2.250:HXINDWSH
4 710-06067HHCS:7/16-20:1.25:GR5:LOCK
5 712-04242NUT:FLGLK:3/8-16:GR2
6 712-0691NUT:HEXLK:M6-1:NYLON:DIN 985
7 Wolf-Garten CLAMP HOSE: 0.50726-0205CLAMP HOSE: 0.50
8 Wolf-Garten SLEV:OIL:DRAIN731-1682ASLEV:OIL:DRAIN
9 Wolf-Garten WASH:FL:0.440 x1.258 x0.164:HD736-0322WASH:FL:0.440 x1.258 x0.164:HD
12 746-05049CBL:THROT:31 LG x 1.1 EXT
13 746-1088CHOKE:CONT:23.0 LG x 1.50 EXT
14 751-10349HOSE:FUEL:LOW PERMEATION
15 751-3013FLTR:FUEL:1/4":298090
16 756-05184PUL:ENG:4.46 DIA / 3.39 DIA
17 783-10009ATHROTTLE CONTROL PLATE
