Wolf-Garten Scooter Pro 13B226HD650 (2015) Steering Ricambi

SHF:STRG:.625 OD X 18.03

Wolf-Garten SHF:STRG:.625 OD X 18.03
Articolo numero:
738-04537A
Posizione:
17
Modell Year:
CC 114 TA / 2014 CC 114 TD / 2014 CC 114 TA / 2015 CC 114 TD / 2015 MiniRider Plus+ / 2015 CC 114 HA / 2016 CC 114 TA / 2016 CC 114 TD / 2016 Scooter Pro / 2015 Scooter Pro / 2014 Scooter Pro / 2016
50.13 €
Tutti i prezzi includono l'IVA nell'UE, in più spedizione
Quantità:
Dettagli di contatto Sicurezza del prodotto
Articolo aggiunto al carrello1
In magazzino. Tempi di consegna circa 6 giorni lavorativi. In magazzino. Tempi di consegna circa 6 giorni lavorativi.

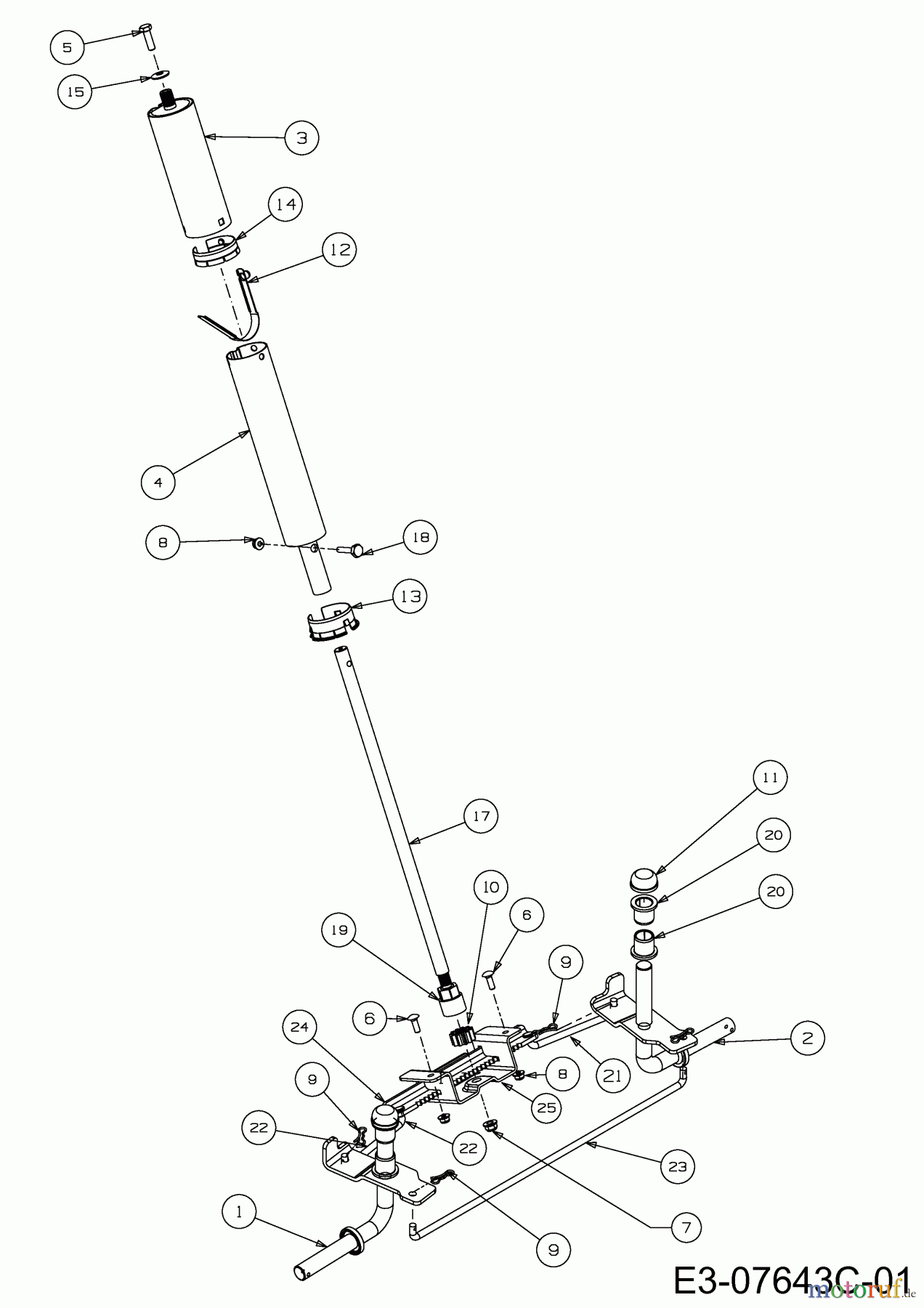

Wolf-Garten Lawn tractors Scooter Pro 13B226HD650 (2015) Steering
PosizioneArticolo numeroDescrizione
1 683-04726
2 683-04727
3 683-04761TUBE ASM UPPER
4 683-04762TUBE ASM LOWER
5 Wolf-Garten HHCS:5/16-18:1.00:GR5:LOCK710-0643HHCS:5/16-18:1.00:GR5:LOCK
6 Wolf-Garten BOLT:CRG:1/4-20:0.75:GR5:STD710-0703BOLT:CRG:1/4-20:0.75:GR5:STD
7 Wolf-Garten NUT:HEXFLGLK:5/16-18:GRN5:NYL712-04063NUT:HEXFLGLK:5/16-18:GRN5:NYL
8 Wolf-Garten NUT:HEXFLGLK:1/4-20:GRN5:NYL712-04064NUT:HEXFLGLK:1/4-20:GRN5:NYL
9 Wolf-Garten PIN:COT:BOW-TIE:1/4" - 3/8"714-04040PIN:COT:BOW-TIE:1/4" - 3/8"
10 Wolf-Garten GEAR:PINION:STRG717-1554GEAR:PINION:STRG
11 Wolf-Garten CAP:PUSH:LGE:3/4-M19726-0341CAP:PUSH:LGE:3/4-M19
12 726-04127CATCH SPRING
13 731-08690COLLAR LOWER STEERING
14 731-08691COLLAR UPPER STEERING
15 Wolf-Garten WASH:BLVL:0.336X0.885X0.060736-0242WASH:BLVL:0.336X0.885X0.060
17 Wolf-Garten SHF:STRG:.625 OD X 18.03738-04537ASHF:STRG:.625 OD X 18.03
18 738-05000SCR:SHLDR:0.373X0.143:1/4-20
19 Wolf-Garten BRG:FLG:HEX:5/8741-04542ABRG:FLG:HEX:5/8
20 Wolf-Garten BRG:FLG:.760 x .941 x 1.0741-0660ABRG:FLG:.760 x .941 x 1.0
21 747-05514STEERING ROD LH
22 747-05585STEERING ROD RH
23 747-06027ROD:TIE:FRONT
24 Wolf-Garten GEAR STEERING SEGMENT783-06988AGEAR STEERING SEGMENT
25 783-07239BRACKET LOWER STEERING
