Golf 245 HR 4 02647.05 (1987) Basic machine Ricambi

REAR FLAP 4.30 X 16.

Articolo numero:
079.25.687
Posizione:
69
Modell Year:
245 HR 4 / 1987
non più disponibile

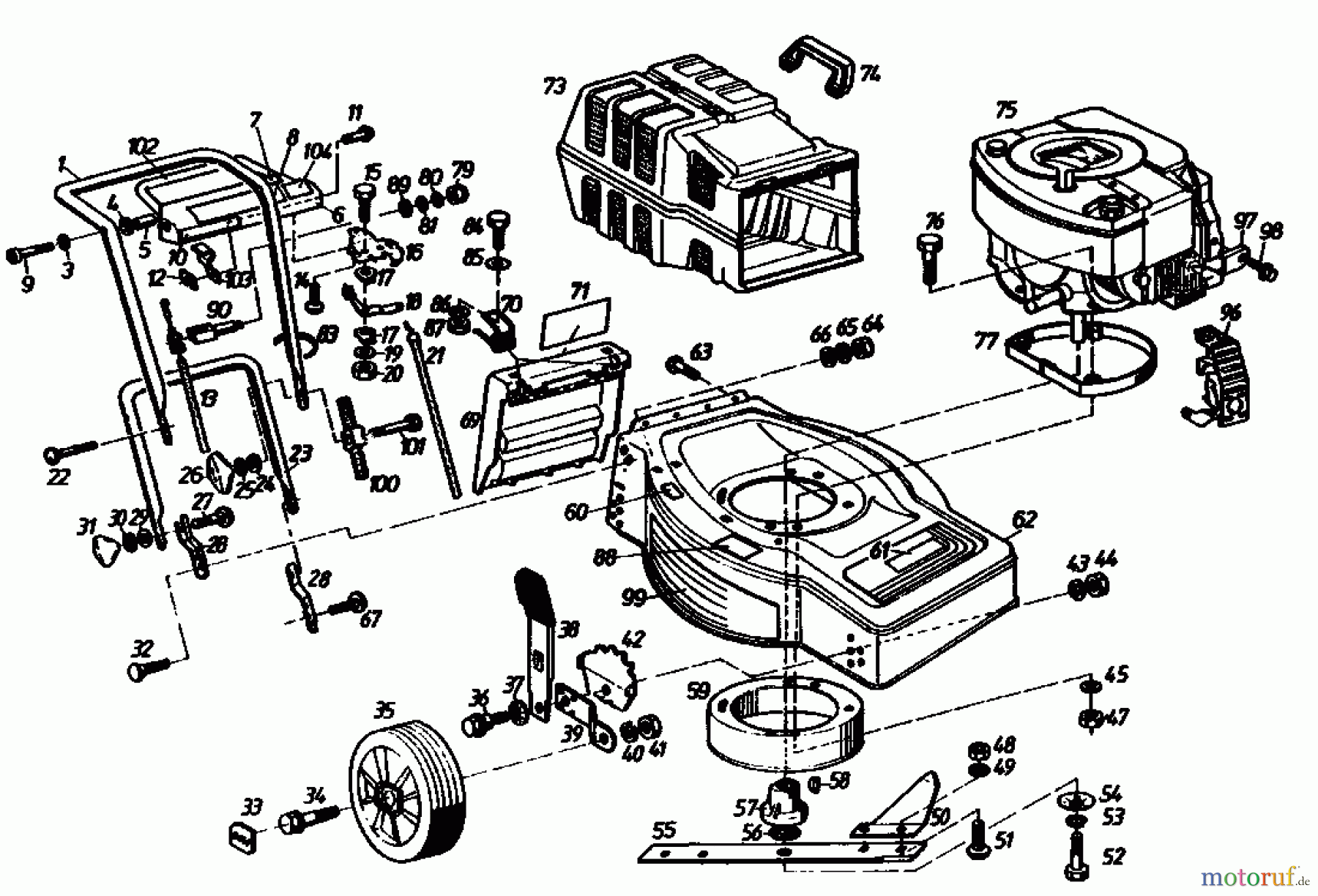

Golf Petrol mower self propelled 245 HR 4 02647.05 (1987) Basic machine
PosizioneArticolo numeroDescrizione
1 079.05.351Upper handle
3 24.8190.14Washer
4 000.20.619Washer
5 079.05.350Bearing bush (4 pce.)
6 079.05.341Instrumental board
7 000.49.196Decal
8 000.49.248Decal
9 35.5422.24
10 000.49.321Decal
11 000.02.455BOLT
12 000.55.024SL-Lock part
13 079.19.864Drive control
14 000.02.337Screw
15 21.1441.48Screw
16 079.11.257Holder
17 079.11.174Friction washer
18 079.11.660Gas lever
19 24.6486.16Washer
20 24.1426.14NYL-STOP-NUT M6 DIN985-8
21 079.11.228THROTTLE CABLE
22 22.3417.32Screw
23 079.05.222Lower handle
24 24.6481.18WASHER 8.4 DIN125
25 24.8191.18L-washer
26 090.26.829WING NUT
27 22.3419.28Screw
28 079.05.230Handle bracket
29 24.6481.18WASHER 8.4 DIN125
30 24.8191.18L-washer
31 000.02.377WING NUT
32 079.29.434Wheel cap
33 079.29.434Wheel cap
34 079.29.374Bolt
35 079.29.768WHEEL
36 079.29.178Screw
37 28.7111.50Spring Washer 25x1
38 079.29.735LVR ASM:HGT:L0-WHL
39 079.29.295Adjusting arm
40 24.8195.18Spring washer
41 24.1421.18Nut
42 079.29.120PLATE-INDEX
43 24.8195.18Spring washer
44 24.1421.18Nut
45 24.6487.20Washer
47 24.1426.18NYL STOP NUT M5 DIN 985-8
48 24.1421.14Nut
49 24.8195.14LOCK WASHER
50 079.77.122Air guide plate
51 000.02.379BOLT
52 000.02.282BLADE SCREW
53 24.8195.22LOCK WASHER
54 090.26.348LOCK WASHER
55 079.77.818Blade assy.
56 079.77.053Friction washer
57 079.77.072Blade hub
58 25.5239.09DISC SPRING
59 079.25.477Ring
60 000.49.073Decal
61 000.49.536Decal GOLF
62 079.26.922DECK
63 000.02.417Screw
64 24.1421.18Nut
65 24.8190.18Lockwasher
66 24.6481.18WASHER 8.4 DIN125
67 22.3419.24Screw
69 079.25.687REAR FLAP 4.30 X 16.
70 000.31.152SCHENKELFEDER RECHTS
71 000.49.615Decal
73 079.80.112GRASS CATCHER HALF
74 079.80.109GRIP
75 079.11.988ASPERA ENGINE
76 21.1443.80Screw
77 079.25.661FLANGE
79 24.3423.12Nut
80 24.8195.12LOCK WASHER
81 24.6486.15Washer A5.3 DIN 9021-ST
83 000.70.261CABLE STRAP
84 21.1441.25SCREW HEX M5x12 DIN 933-8.8
85 24.6486.15Washer A5.3 DIN 9021-ST
86 24.6481.12WASHER A5.3 DIN 125-ST
87 24.1421.12Nut
88 000.49.599Type plate
89 24.6273.23ADJUST. WASHER & SUPP. SHIM
90 000.02.404Screw
96 090.93.692Heat protection
97 090.93.172EXHAUST PLATE
98 090.34.124Screw
99 000.49.539Decal
100 079.05.304WIRE SLEEVE
101 21.1443.79Screw
102 079.05.338BAIL
103 079.05.349Clamp
104 000.49.676Decal
