Robomow RS612 PRD6100B (2015) Basic machine Ricambi

Name: BATTERY SHIELD
Price: 38.48 EUR

BATTERY SHIELD

Articolo numero:

GEN6053B

Posizione:

62B

DINNORM:

GEN6053B

Modell Year:

RS612 / 2015

38.48 €

Tutti i prezzi includono l'IVA nell'UE, in più spedizione

Articolo aggiunto al carrello1

Sarà ordinato per te. Tempi di consegna da 5 a 14 giorni lavorativi circa.

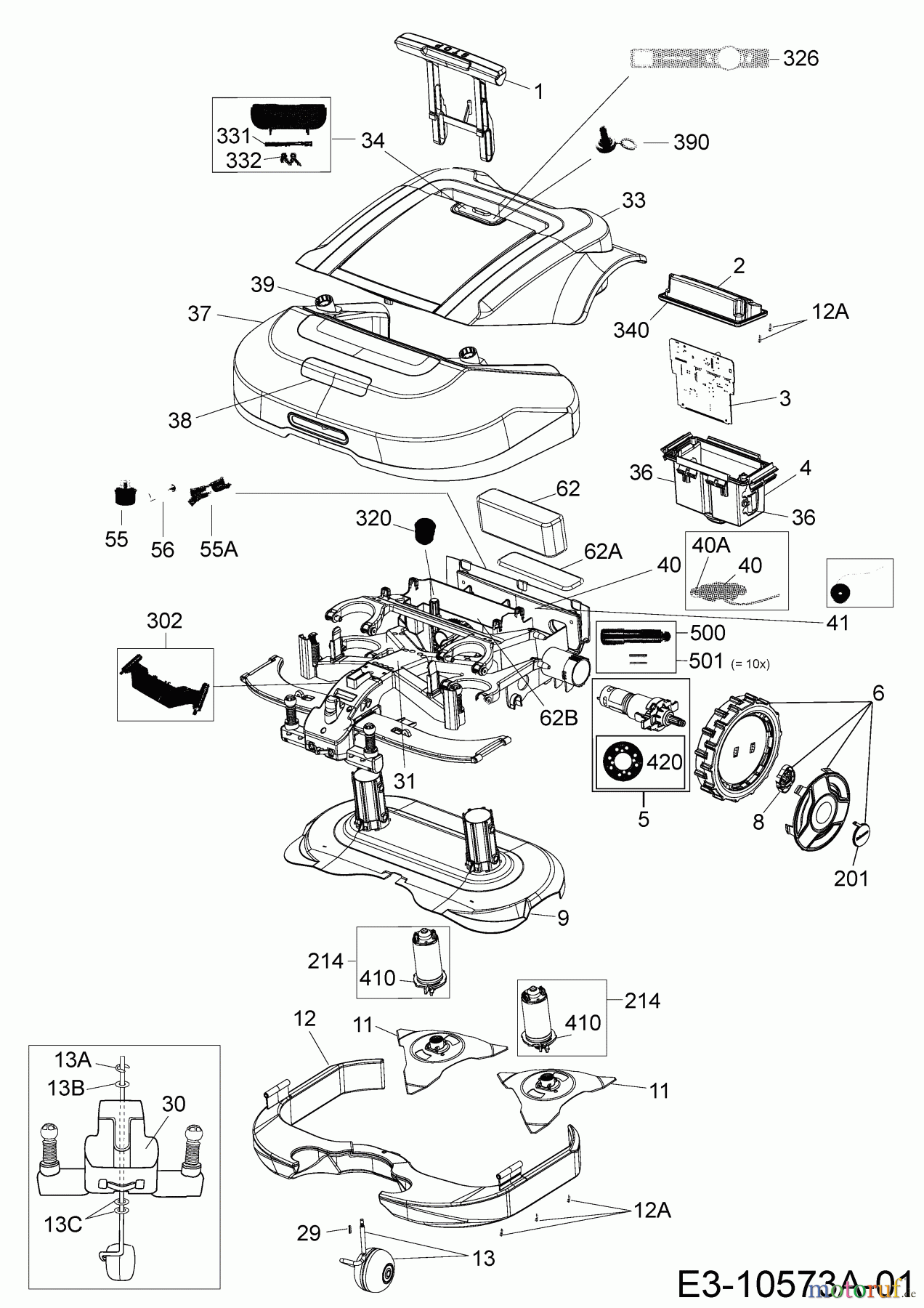

Posizione	Articolo numero	Descrizione
1	MSB6310B	HANDLE / STOP ASSY.
2	MSB6340B	LCD PANEL ASSY
3	SPP6008A	RS MAIN BOARD 2014
4	MSB6320A	C-BOX ASSY
5	SPP6109A	DRIVE MOTOR ASSY S-MODELS
6	SPP6101A	RS DRIVE WHEEL + LOCKER
8	INJ6160A	WHEEL LOCK
9	MSB6003B	DECK ASM-SD:46"
11	MRK6101A-ET	2 BLADE KIT
12	MSB6004C	FLOATER ASM.
12A	SCR6009A	EJOT WN 1452 K30 L 12MM
13	MSB6007D	FRONT WHEEL ASSY 2014 S-MODEL
13A	RNG6010A	SNAP RING FOR 6MM SHAFT
13B	RNG6002A	WASHER STEEL M6 DIN 125
13C	RNG6007B	WASHER 8X14X1MM DIN988
29	MSB6173A	FRONTWHEEL MAGNET HOLDER ASSY
30	INJ6460A	LIGHT COVER (COCKPIT)
31	SPP6104A	RS CHASSIS ASM.
33	MSB6008B	COVER ASSY GREEN
34	SPP6009A	KIT DOOR SHUTTER RS
36	INJ6550A	C-BOX RUBBER DOOR
37	MSB6001A	BUMPER ASSY BLACK
38	INJ6260A	LENS LED HEADLIGHT
39	INJ6274A	BUMPER HANG CAVITY
40	INJ6371A	SPEAKER HOLDER
40A	SCR6005A	Sternantrieb WN1451 K40 L12
41	BUZ6000G	PIEZO BUZZER WITH CABLE
55	SPP6107A	FUSE THREAD
55A	INJ6570A	FUSE HOLDER
56	FUS6000A	FUSE 32V/20A FAST ACTING/GLASS
62	MRK6105A-ET	BATTERY RS
62A	PCK6005A	POLYSTYRENE 2677170
62B	GEN6053B	BATTERY SHIELD
201	INJ6690B	HUBCAP ROBOMOW
214	SPP7013A	MOWING MOTOR
302	MSB6030A	RS HEIGHT LIMITER ASSY.
320	INJ6710A	ADJUSTMENT KNOB
326	STC6003B	STICKER MOWING HEIGHT
331	GEN6012A	ROD
332	GEN6015A	EXTENSION SPRING
340	INJ6372A	MAINBOARD HOUSING GROMMET
390	GEN6041A	SWITCH RUBBER CUP
410	INJ6020A	MOWING MOTOR FLANGE
420	INJ6153A	DRIVE MOTOR FLANGE
500	GEN6069A	ALUMINIUM DRIVE SPLINE
501	SPP6012A	DRIVE SPLINE KIT (10 PIECES)
