Gutbrod MH 532 RV 04007.01 (1995) Height adjustment, Wheels Ricambi

Screw

Nota: Questo articolo è4 volte installato nel dispositivo, il prezzo è per pezzo!
Articolo numero:
000.02.334
Posizione:
39
DINNORM:
TYP MC6STT M5X12
Modell Year:
MH 532 RV / 1993 MH 532 RV / 1994 MH 532 RV / 1995
non più disponibile

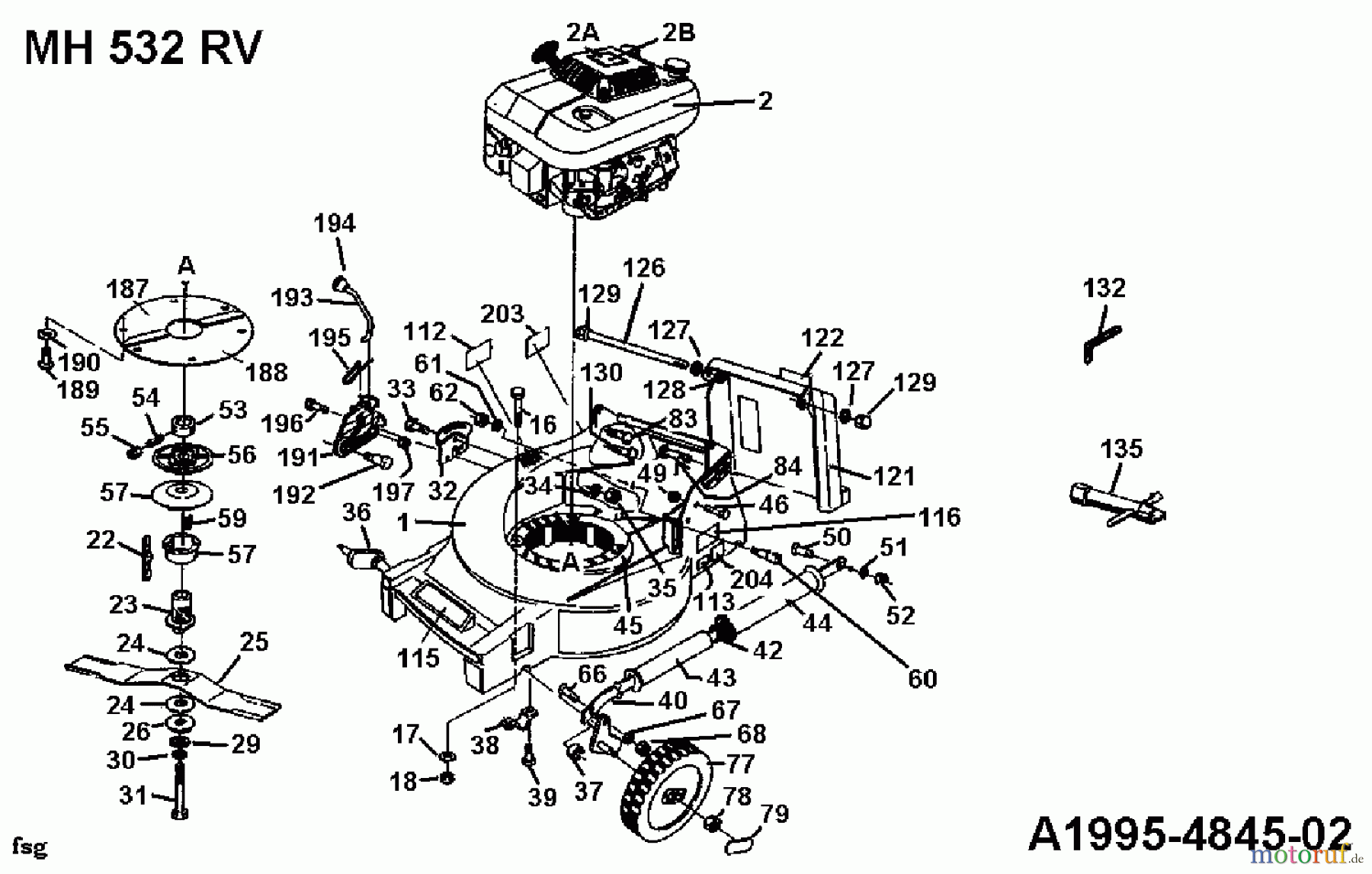

Gutbrod Petrol mower self propelled MH 532 RV 04007.01 (1995) Height adjustment, Wheels
PosizioneArticolo numeroDescrizione
1 079.27.911Deck
2 090.64.958ENGINE
2A 000.50.379Decal
2B 000.49.982Decal
16 21.1443.77Screw
17 24.6481.18WASHER 8.4 DIN125
18 24.1426.18NYL STOP NUT M5 DIN 985-8
22 000.12.044DOUBLE DISC WASHER
23 079.77.332Blade hub
24 079.77.257Friction washer
25 079.77.358Blade
26 079.77.327Washer
29 090.26.348LOCK WASHER
30 24.8190.22Lockwasher
31 000.02.354Screw
32 079.30.062Adjusting plate
33 21.1441.27Screw
34 24.6481.14WASHER A6.4 DIN 125-ST
35 24.1426.14NYL-STOP-NUT M6 DIN985-8
36 079.30.866Front axle assy.
37 079.30.094CLAMP RING
38 079.29.230AXLE BRACKET
39 000.02.334Screw
40 079.30.206Rod
42 000.30.268COMPRESSION SPRING
43 079.30.207Tube inside
44 079.30.208OUTER TUBE
45 079.30.127Counter bracket
46 21.1441.48Screw
49 24.1426.14NYL-STOP-NUT M6 DIN985-8
50 22.1420.39Screw
51 24.6481.12WASHER A5.3 DIN 125-ST
52 24.1426.12NYL STOP NUT M5 DIN 985-8
53 24.8658.22Ring
54 23.4454.46Stud
55 24.1426.18NYL STOP NUT M5 DIN 985-8
56 079.77.372Pulley - half
57 079.77.642UNTEN VOLLST.079.77.373/369
59 000.30.313spring
60 000.02.557SCREW
61 24.6486.15Washer A5.3 DIN 9021-ST
62 24.1426.12NYL STOP NUT M5 DIN 985-8
66 22.1420.39Screw
67 24.6481.12WASHER A5.3 DIN 125-ST
68 24.1426.12NYL STOP NUT M5 DIN 985-8
77 079.30.939Wheel assy.
78 000.02.364Nut
79 079.30.646Wheel cap
83 22.3419.30Screw
84 000.02.555Screw
112 000.49.768Decal
113 000.49.634LABEL
115 000.50.048Decal
116 000.50.376Decal
121 079.26.634Rear flap
122 000.50.309Decal
126 079.26.129Rod
127 24.6486.18WASHER A8.4 DIN 9021
128 000.20.367Washer plain
129 24.3225.18Nut
130 22.3419.28Screw
132 000.40.479Spanner
135 000.40.853Spark plug spanner
187 079.26.143Cover
188 079.26.144Cover
189 000.02.552Screw
190 24.6486.13Washer
191 079.30.897Adjusting piece
192 079.30.041Wheel bolt
193 079.30.899Adjusting lever
194 000.36.023Knob
195 000.30.254SPRING
196 21.1441.50Screw
197 24.1426.14NYL-STOP-NUT M6 DIN985-8
203 000.50.530Decal
204 000.49.377LGA-Decal
