MTD GCS 46/40 C 41BY4640678 (2011) Muffler, Air filter, Carburetor Ricambi

AIR FILTER

Articolo numero:
SG-2044700
Posizione:
155
DINNORM:
2044700
Modell Year:
GCS 46/40 C / 2011 GCS 46/45 C / 2011
non più disponibile

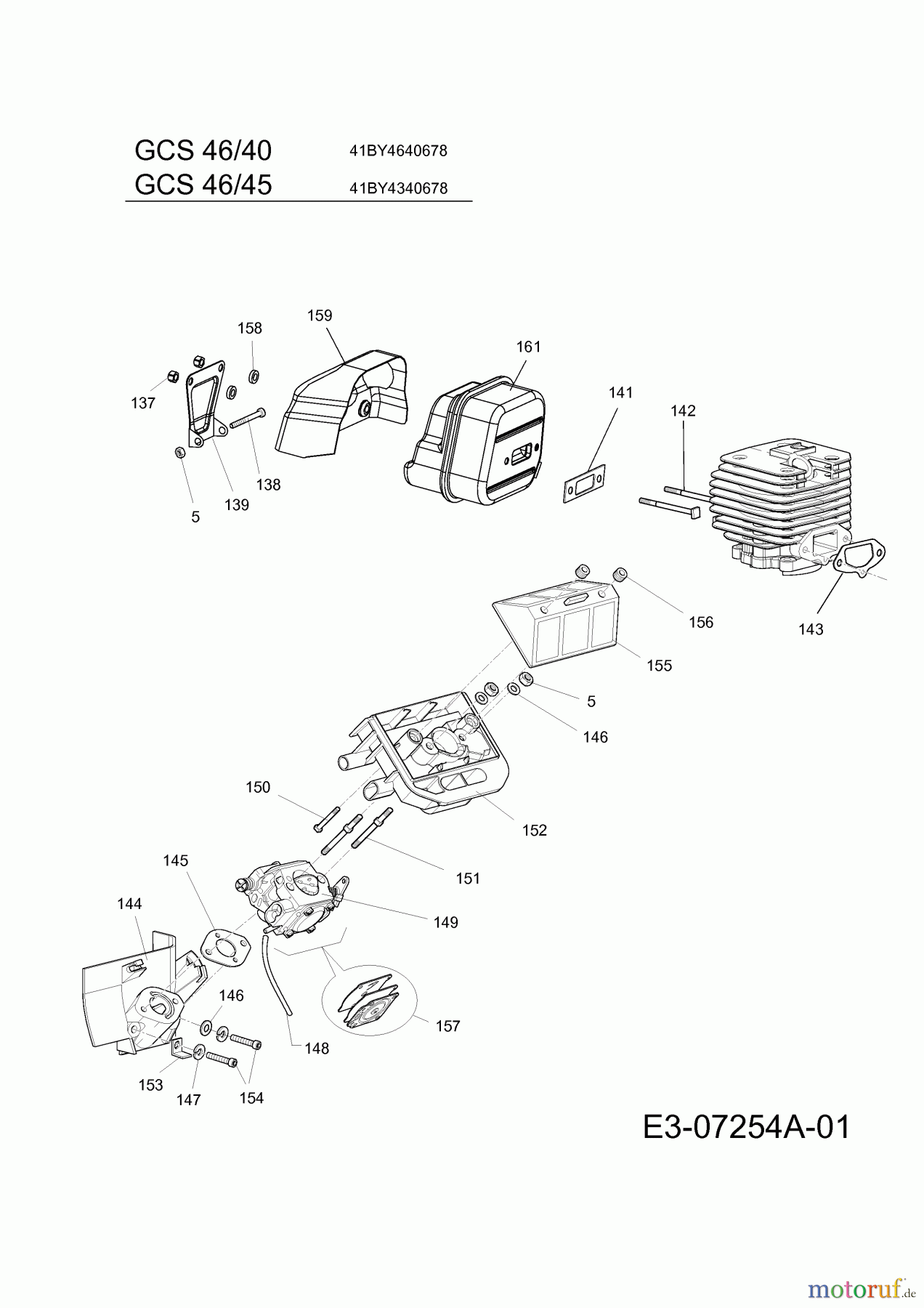

MTD Petrol chain saws GCS 46/40 C 41BY4640678 (2011) Muffler, Air filter, Carburetor
PosizioneArticolo numeroDescrizione
5 SG-2044950NUT M5
137 SG-2045260NUT:U-TYPE
138 SG-2045250Screw
139 SG-2044460COVER EXHAUST
141 SG-2050820EXHAUST GASKET
142 SG-2045360SCREW M5X80 MUFFLER
143 SG-2044590CARBURETOR GASKET
144 SG-2044580INSULATING
145 SG-2044840CARBURETOR GASKET
146 SG-2045320washer
147 SG-2045330RING-SNAP
148 SG-2044620TUBE CARBURETOR
149 SG-2042100CARBURETOR WITH GASKETS
150 SG-2045370SCREW TE M4X30
151 SG-2042101THREADED BOLT
152 SG-2044690BASE AIR FILTER
153 SG-2045350ANGULAR FIXATION PART
154 SG-2045340Screw
155 SG-2044700AIR FILTER
156 SG-2044701NUT AIR CLEANER
157 SG-2045400DIAPHRAGM KIT
158 SG-2074253SLEEVE
159 SG-2078081SHEILD-HOOD STYLE 8 2.58LG
161 SG-2078083EXHAUST
