MTD E 350 25A-530A678 (1998) Basic machine Ricambi

Name: WASH:SDL:.320 x.93 x.060
Price: 2.50 EUR

WASH:SDL:.320 x.93 x.060

Articolo numero:

736-0451

Posizione:

DINNORM:

FINISH:MTD SPEC-100015

Modell Year:

E 350 / 1998

2.50 €

Tutti i prezzi includono l'IVA nell'UE, in più spedizione

Articolo aggiunto al carrello1

Sarà ordinato per te. Tempi di consegna da 5 a 14 giorni lavorativi circa.

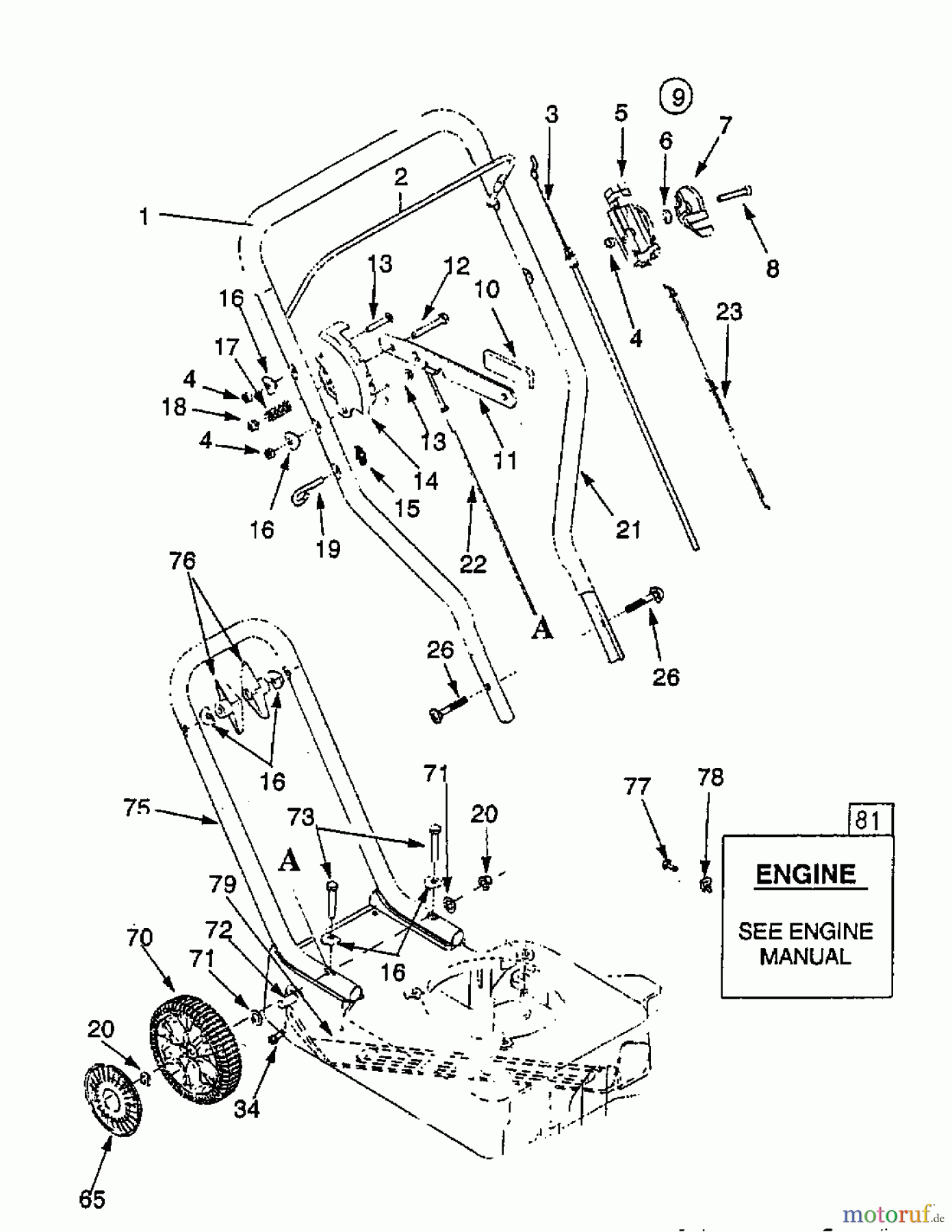

Posizione	Articolo numero	Descrizione
1	720-0297	GRIP-FOAM
2	747-0976	BAIL
3	746-0965	CONTROL CABLE 34" B&S
3A	746-1078	CONTROL CABLE 43" TEC
3B	746-0966	CONTROL CABLE
3C	746-0971	CONTROL CABLE 44" TEC
4	712-0324	NUT:HEXLK:1/4-20:GR8:NYLON
5	646-0875	THROTTLE BODY
6	736-0501	WASH:SPR:.663 x.980 x.014
7	746-0876	LEVER-THROTTLE
8	710-0605	SCR:MACH:1/4-20:1.825:OVALCSK
10	720-0142	HANDLE
11	781-0742	Traction handle
12	710-0116	SCREW-HEX
13	710-0256	BOLT-CARRIAGE
14	781-0741	HEIGHT ADJUSTMENT PLATE
15	720-0279	WING NUT
16	736-0451	WASH:SDL:.320 x.93 x.060
17	732-0369	COMPRESSION SPRING
18	712-0429	NUT:HEXLK:5/16-18:GR5:NYLON
19	710-1205	BOLT:EYE:1/4-20: BENT ROPE GDE
20	726-0299	CAP
21	749-1079	HANDLE UPPER PART
22	746-0955	DEPTH CABLE
23	746-0845	CABLE-THROTTLE
26	710-1174	BOLT:CRG:5/16-18:2.0 CRVD
34	750-1163	SPACER
65	731-1426	HUBCP:WHL:RADIAL SPOKE YELLOW
65	731-0981A	HUBCP:WHL:RADIAL SPOKE GREY
65	731-0982A	HUBCAP:WHL:RADIAL SPOKE BEIGE
70	734-1819	WHL:COMPL:8.0X2.0 LINK GRAY
70	734-1818	WHL:COMPL:8.0X2.0 LINK YELL
70	734-1780	WHEEL ASSY
70	734-1844	WHEEL
70	734-1820	WHEEL
70	734-1841	WHL:COMPL:8X1.7 AERO GRAY PB
71	736-3068	WASH-FLAT:.531 x.875 x.060
72	711-1269	AXLE-EDGER
73	710-3180	HHCS:5/16-18:1.75:GR5:STD
75	749-1078	LOWER HANDLE
76	720-0241	WING NUT
77	710-0871	HEX. SCREW 10X32X.3LG
77	710-1237	HEXSCREW:T:10-32:.625:HXINDWSH
78	7510007775	THROTTLE CLAMP TEC
78	751B213146	CLAMP:CASNG:B&S THROTTLE
79	781-0758	ROD-GRILLE SUPPORT
81	09D902	ENGINE
