Gutbrod Golden Sprint 2500 H 13AD79GN604 (1998) Dashboard Ricambi

NUT:PUSH:.25 ID X .50 OD

Articolo numero:
726-0233
Posizione:
18
DINNORM:
FINISH:PHOS AND OIL
Modell Year:
145/102 H / 1998 155/102 H / 1997 Golden Sprint 2500 H / 1998 Sprint 2002 H / 1997 Sprint 2002 H / 1998 Sprint 3000 H / 1998
2.69 €
Tutti i prezzi includono l'IVA nell'UE, in più spedizione
Quantità:
Dettagli di contatto Sicurezza del prodotto
Articolo aggiunto al carrello1
yellow Sarà ordinato per te. Tempi di consegna da 5 a 14 giorni lavorativi circa.

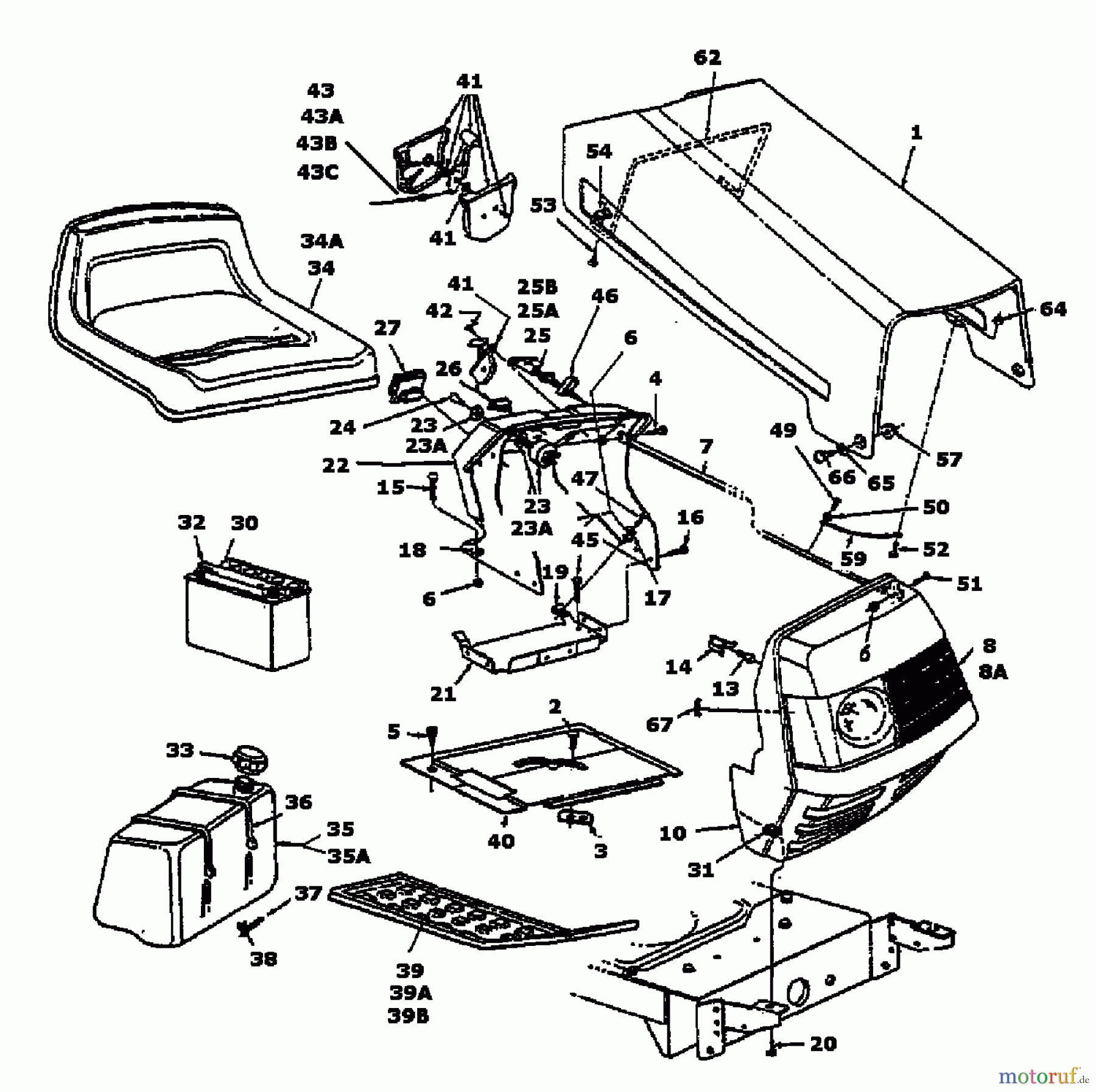

Gutbrod Lawn tractors Golden Sprint 2500 H 13AD79GN604 (1998) Dashboard
PosizioneArticolo numeroDescrizione
1 17941HOOD
2 Gutbrod SCR:AB:#8-18:0.500:HXINDWH710-0227SCR:AB:#8-18:0.500:HXINDWH
3 726-0320INSULATING PLATE
4 710-0258HHCS:1/4-20:.625:GR2:STD
5 710-0351SCR:B:#10-16:0.5":PANPHI
6 Gutbrod NUT:SEMS:1/4-20712-0271NUT:SEMS:1/4-20
7 749-0722BROD:SUPPORT:GRILLE:PAINTED
8 Gutbrod LENS "0" STYLE w/o ICON731-1099ALENS "0" STYLE w/o ICON
8A 731-1767LENS:7 0 STY
10 17940BGRILLE"1"STY
13 Gutbrod LAMP:#1156725-0963LAMP:#1156
14 Gutbrod LAMP SOCKET, LONG725-1651LAMP SOCKET, LONG
15 Gutbrod SCR:CRG:1/4-20:.75:GR5710-0703SCR:CRG:1/4-20:.75:GR5
16 Gutbrod SCREW:TT:1/4-20:0.500:HXINDWSH710-0599SCREW:TT:1/4-20:0.500:HXINDWSH
17 736-0173WASH:FL:.28ID:.74OD:.063
18 726-0233NUT:PUSH:.25 ID X .50 OD
19 Gutbrod ZIP TWIST FASTENER (FOR Ò 1/4712-0185ZIP TWIST FASTENER (FOR Ò 1/4
20 710-0118HHCS:5/16-18:.75:GR2:STD
21 17632ABRKT:BAT:SUPT
22 731-1096BInstrument panel
23 725-0267SW:IGN:5 PIN
23A Gutbrod SW:IGN:6 PIN725-1396SW:IGN:6 PIN
24 Gutbrod KEY:IGN:STD725-0201KEY:IGN:STD
25 Gutbrod CHOKE CONTROL 23" GREEN746-0616ACHOKE CONTROL 23" GREEN
25A 746-3021CONT:CHOKE:SNAP MT X 29 LG
25B Gutbrod CONT:CHOKE:SNAP MT X 38" LG746-0614ACONT:CHOKE:SNAP MT X 38" LG
26 Gutbrod SW:ROCKER725-0634SW:ROCKER
27 725-0925SQUARE AMMETER
30 759-3750BATTERY CAP
31 726-0211NUT:U:5/16-18
32 725-1635BAT 275CCA CALCIUM W/O ACID PA
33 Gutbrod CAP-GAS TANK751-0603CAP-GAS TANK
34 757-0345SEAT V-350 (4) BOLT BLACK
34A 757-0338SEAT V-450 (4) BOLT BLACK
35 751-0555TANK:GAS:1.5 GALLON
35A 751-0553TANK:FUEL:1.25 GALLON
36 Gutbrod TIE:CBL:30.66 LG726-0209TIE:CBL:30.66 LG
37 Gutbrod FUEL LINE (METER LENGTHS ONLY)751-0535-METFUEL LINE (METER LENGTHS ONLY)
38 Gutbrod CLAMP HOSE: .490 DIA726-0205CLAMP HOSE: .490 DIA
39 731-0909PAD-LH FOOT
39A 731-0910PAD-RH FOOT
39B 723-0422PAD:FT:ABRASIVE TYPE
40 783-0133BCVR: SHF
41 Gutbrod THROTTLE CONTROL BOX ASSY831-0823ATHROTTLE CONTROL BOX ASSY
42 Gutbrod SCR:AB:#10-16:0.500:TRUSPHI710-0779ASCR:AB:#10-16:0.500:TRUSPHI
43 Gutbrod WIRE:THROT:X 18.5746-0776WIRE:THROT:X 18.5
43A Gutbrod THROTTLE WIRE 22.0 GOLD746-0638THROTTLE WIRE 22.0 GOLD
43B Gutbrod THROTTLE WIRE X 35.0 BLUE746-0634THROTTLE WIRE X 35.0 BLUE
43C Gutbrod WIRE:THROT:X 22.0746-0775WIRE:THROT:X 22.0
45 710-0603SCR:B:5/16-12:0.500:HXINDWSH
46 17782CHOKE CABLE RETAINER CLIP
47 Gutbrod SCR:TT:1/4-20:.750:HXINDWSH710-0642SCR:TT:1/4-20:.750:HXINDWSH
49 710-0351SCR:B:#10-16:0.5":PANPHI
50 736-0400WASH:FLAT:.194 x .62 x .063
51 Gutbrod SCR:MACH:1/4-20:0.750 PANPHI710-0924SCR:MACH:1/4-20:0.750 PANPHI
52 710-0473SCR:MACH:#10-24:0.500:TRUSPHI
53 710-0589SCR:AB:#10-16:0.750:HXINDWSH
54 726-0130SPEEDNUT 10Z-"U" TYPE
57 Gutbrod NUT:FLGLK:1/4-20:GRF712-3027NUT:FLGLK:1/4-20:GRF
59 723-0302HOOD STOP X 7.0
62 732-0714HOOD SPRING
64 712-0272NUT SEMS:#10-24
65 736-0413WASH-SPR:.390 x.625 x.012
66 738-0952SCR:SHLDR:.375 X.125:1/4-20
67 Gutbrod PIN:COT:.072 DIA x 1.13 LG714-0104PIN:COT:.072 DIA x 1.13 LG
