Cub Cadet LGTX 1050 13AS92AP056 (2014) Mowing deck P (50"/127cm) Ricambi

Articolo numero:
703-3511B
Posizione:
6
Description:
50''. 54''
Modell Year:
LGTX 1050 / 2014 LGTX 1050 / 2015
34.84 €
Tutti i prezzi includono l'IVA nell'UE, in più spedizione
Quantità:
Dettagli di contatto Sicurezza del prodotto
Articolo aggiunto al carrello1
in magazzino in magazzino

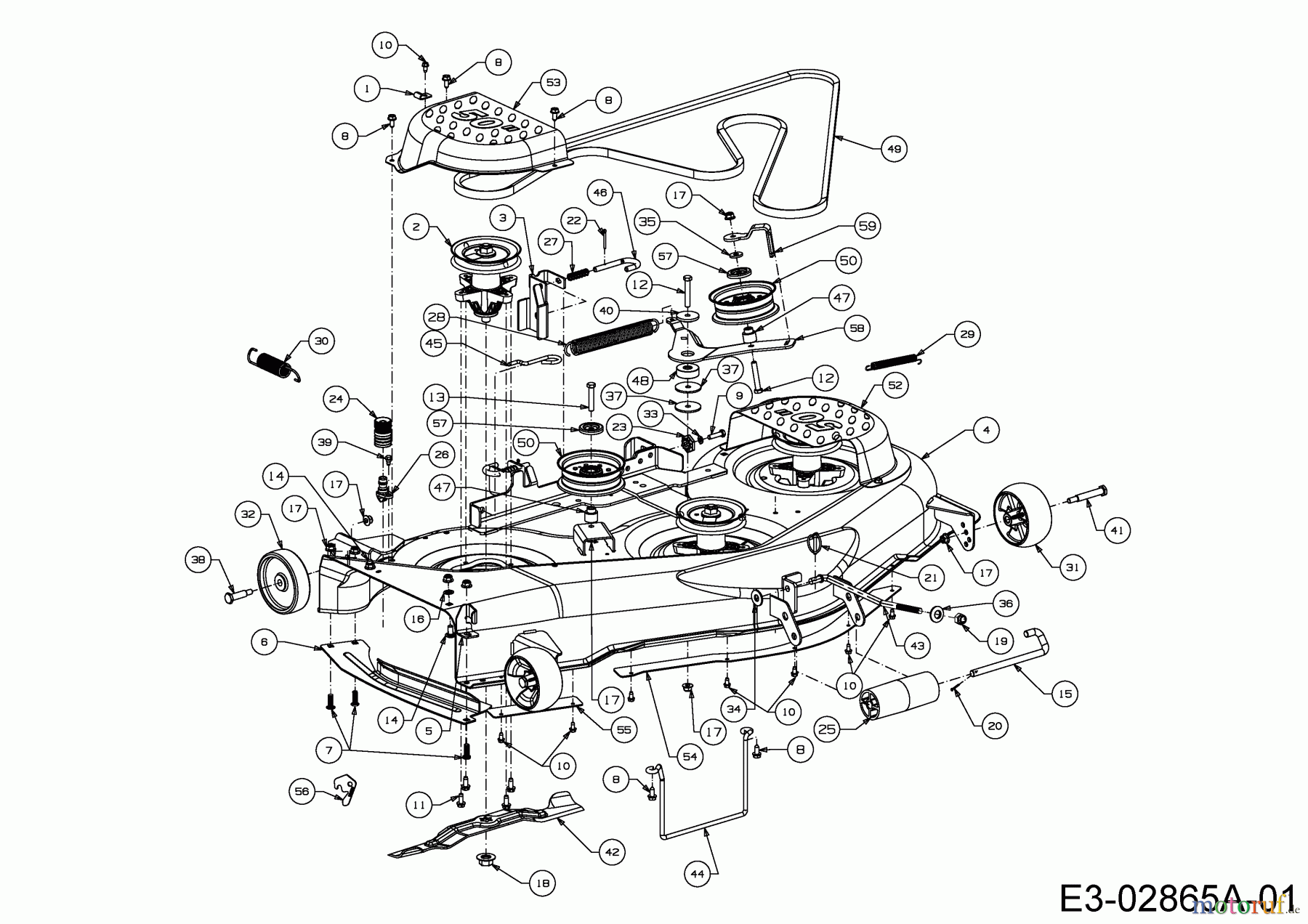

Cub Cadet Lawn tractors LGTX 1050 13AS92AP056 (2014) Mowing deck P (50
PosizioneArticolo numeroDescrizione
1 16606BRKT:HOOK:RETAINER
2 Cub Cadet SPDL ASM:PUL:5.39 DIA x.5625618-04125BSPDL ASM:PUL:5.39 DIA x.5625
3 683-0254BBRKT:ASM:DECK:HNGR LH LT
4 683-05148DECK ASM:50":LT/SLT
5 703-3279STOP:CHUT:DFL GALVANIZED
6 703-3511B
7 Cub Cadet HHCS:3/8-16.1.00:GR5:SPEC710-04095HHCS:3/8-16.1.00:GR5:SPEC
8 Cub Cadet SCREW:TT:5/16-18:.750:HXINDWSH710-04484SCREW:TT:5/16-18:.750:HXINDWSH
9 Cub Cadet HHCS:5/16-18:1.25:GR5:STD710-0528HHCS:5/16-18:1.25:GR5:STD
10 Cub Cadet SCR:TT:1/4-20:0.500:HXINDWSH710-0599SCR:TT:1/4-20:0.500:HXINDWSH
11 Cub Cadet SCR:TT:5/16-18:0.750:HXINDWSH710-1260ASCR:TT:5/16-18:0.750:HXINDWSH
12 710-3011HHCS:3/8-16:2.25:GR5:STD
13 Cub Cadet HHCS:3/8-16:2.00:GR5:STD710-3144HHCS:3/8-16:2.00:GR5:STD
14 Cub Cadet BOLT:CRG:3/8-16:0.75:SHRT NK710-3178BOLT:CRG:3/8-16:0.75:SHRT NK
15 711-3314PIN, ROLLER
16 Cub Cadet NUT:PUSH:3/8712-0229NUT:PUSH:3/8
17 Cub Cadet NUT:FLGLK:3/8-16:GRF:NYLON712-04065NUT:FLGLK:3/8-16:GRF:NYLON
18 Cub Cadet NUT:FLG:5/8-18712-0417ANUT:FLG:5/8-18
19 Cub Cadet NUT:FLXLK:1/2-13712-04243NUT:FLXLK:1/2-13
20 Cub Cadet COTTER PIN 3/32 DIA X 1.00714-0111COTTER PIN 3/32 DIA X 1.00
21 714-0220APIN:LYNCH:.1875
22 Cub Cadet PIN:COT:1/8 x 1.25714-0470PIN:COT:1/8 x 1.25
23 Cub Cadet GEAR:DECK:ADJUSTMENT717-04074GEAR:DECK:ADJUSTMENT
24 721-04041ADAPER:WATER NOZZLE
25 731-05679ARLR:FRT
26 731-07487NOZ:DECK WSH
27 Cub Cadet SPR:COMP:.535 OD x 1.751 LG732-04652SPR:COMP:.535 OD x 1.751 LG
28 732-04927SPR:EXT:1.25 OD x 8.5 LG:RZTS
29 Cub Cadet SPR:EXTN:.56 DIA x 5.52 LG732-0814SPR:EXTN:.56 DIA x 5.52 LG
30 Cub Cadet SPRING:EXTN:1.15 OD x 5.99 LG732-0934SPRING:EXTN:1.15 OD x 5.99 LG
31 Cub Cadet WHEEL:DECK734-04155WHEEL:DECK
32 734-0973WHEEL:DECK 5.0 X 1.38
33 Cub Cadet WASHER:LOCK:5/16:SPLT:REG736-0119WASHER:LOCK:5/16:SPLT:REG
34 736-0179WASH:FLAT:.531x1.1250x.100
35 Cub Cadet WASHER:FLAT:.385 x 1.0 x.135736-0258WASHER:FLAT:.385 x 1.0 x.135
36 736-0317WASH:BLVL:.630x1.250x.180
37 736-04018WASH:FLAT:.380x2.000x.120
38 Cub Cadet SCR:SHLDR:.496 x 1.525: 3/8-16738-0373SCR:SHLDR:.496 x 1.525: 3/8-16
39 Cub Cadet SCR:SHLDR:1/4-20:0.50:HXINDWSH738-04278SCR:SHLDR:1/4-20:0.50:HXINDWSH
40 738-05082SPCR:SHLDR:.970 x .190
41 Cub Cadet BOLT:SHLDR:.496 x 2.50:3/8-16738-3056BOLT:SHLDR:.496 x 2.50:3/8-16
42 Cub Cadet BLADE:17.90 LG STAR 2 IN 1742-04053CBLADE:17.90 LG STAR 2 IN 1
43 747-05067AROD:LIFT:DECK:FRT:11.7
44 747-05195ROD:KEEPR:50/54 DECK
45 747-05608HOOK:ROD:SPRING:DECK
46 Cub Cadet ROD:HNDL:DECK REL .375 DIA747-1116ROD:HNDL:DECK REL .375 DIA
47 748-05037ASPCR:SHLDR:IDLR PIVOT
48 750-06184SPCR:.385 ID x 1.75 OD x .585
49 Cub Cadet BELT:V TYPE:B SEC X 134 ARAMID754-04077BELT:V TYPE:B SEC X 134 ARAMID
50 756-05034PUL:IDLR:4.50" DIA
52 783-04399CVR:BELT:LH 50" LT
53 783-04400CVR:BELT:RH 50" LT
54 783-04414ASKIRT:CNTR:50"
55 783-04415SKIRT:RH:50"
56 783-06241BRKT:STOP:CHUTE:50"/54"
57 Cub Cadet CAP:PULLEY:HD783-08389CAP:PULLEY:HD
58 783-08615BRACKET IDLER PIVOT
59 783-08619KEEPER BELT
