MTD Minirider 60 SD 13A625JC600 (2014) Mowing deck C (24"/60cm) Ricambi

Articolo numero:
783-08593
Posizione:
32
Modell Year:
Minirider 60 SD / 2014 Minirider 60 SDE / 2014
non più disponibile

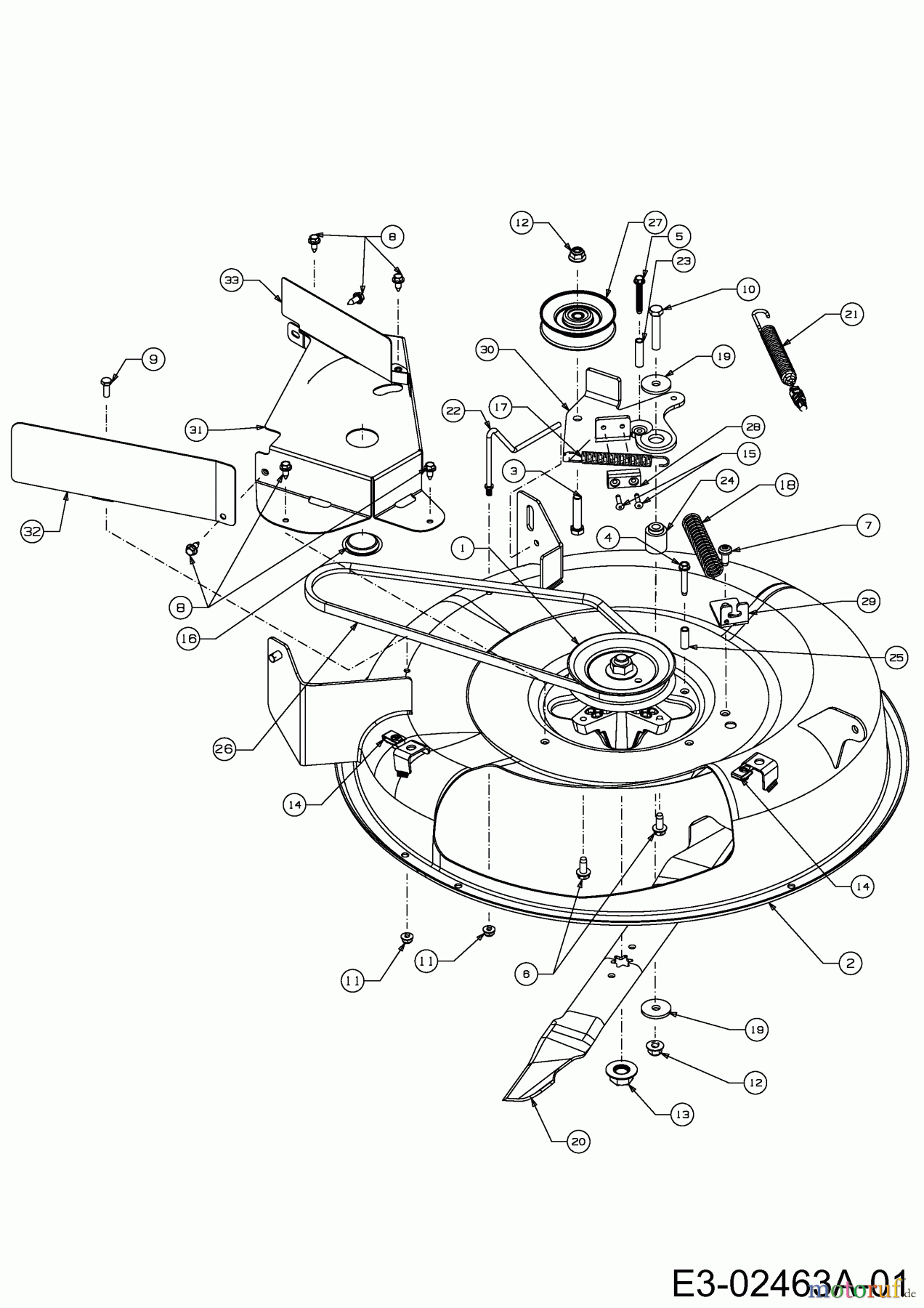

MTD Lawn tractors Minirider 60 SD 13A625JC600 (2014) Mowing deck C (24
PosizioneArticolo numeroDescrizione
1 618-06032SPDL ASM:PUL:5.695 DIA X .5625
2 683-05008A
3 MTD HHCS:3/8-16:1.75:GR5:STD710-0347HHCS:3/8-16:1.75:GR5:STD
4 MTD HEX. SCREW TT:1/4-20:1.500:710-0778HEX. SCREW TT:1/4-20:1.500:
5 MTD SCREW:TT:1/4-20:1.750:HXINDWSH710-1026SCREW:TT:1/4-20:1.750:HXINDWSH
6 MTD SCR:TT:5/16-18:0.750:HXINDWSH710-1260ASCR:TT:5/16-18:0.750:HXINDWSH
7 710-1611BSCR:TT:5/16-18:0.750:PANTRXI
8 MTD SCR:TT:1/4-20 x.625:HXINDWH710-1652SCR:TT:1/4-20 x.625:HXINDWH
9 MTD HHCS:1/4-20:.75:GR5:STD710-3015HHCS:1/4-20:.75:GR5:STD
10 MTD HHCS:3/8-16:2.00:GR5:STD710-3144HHCS:3/8-16:2.00:GR5:STD
11 MTD NUT:FLGLK:1/4-20:GRF:NYLON712-04064NUT:FLGLK:1/4-20:GRF:NYLON
12 MTD NUT:FLGLK:3/8-16:GRF:NYLON712-04065NUT:FLGLK:3/8-16:GRF:NYLON
13 MTD NUT:FLG:5/8-18712-0417ANUT:FLG:5/8-18
14 726-0211NUT:U:5/16-18
15 728-0173RIV:POP: .187 DIA:#68
16 731-10231END PLUG
17 MTD EXTENSION SPRING .53 OD X 4.75732-0470AEXTENSION SPRING .53 OD X 4.75
18 MTD Spring732-0583Spring
19 MTD WASH:FLAT:.380 x.1.380 x.125736-0320WASH:FLAT:.380 x.1.380 x.125
20 742-0760BLADE:24":STAR 3 IN 1
21 746-05009CABLE BLADE CONTROL
22 747-06116
23 MTD SPACER:.260 x.372 x 1.420 LG750-04456SPACER:.260 x.372 x 1.420 LG
24 750-04859CSPACER-PULLEY
25 MTD SPCR: .260 X .375 X 1.030 LG750-0566ASPCR: .260 X .375 X 1.030 LG
26 MTD BELT V-TYPE754-05001BELT V-TYPE
27 756-05004PULLEY
28 MTD PAD:BRAKE:SPINDLE 38 & 42 MAN761-04017PAD:BRAKE:SPINDLE 38 & 42 MAN
29 783-06243
30 783-08039BRACKET IDLER
31 783-08136B
32 783-08593
33 783-08594
